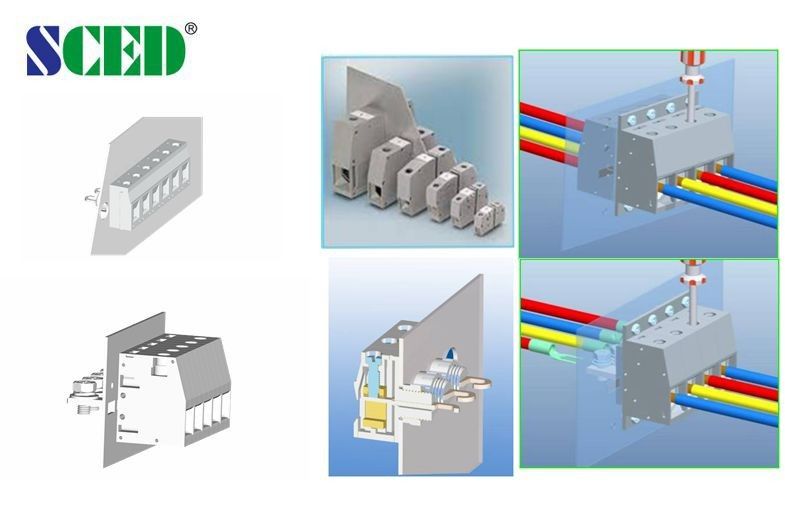

PA66 Through Panel Terminal Blocks 600V/230A 25mm Terminal Width
Detailed product Description:
Pitch 25.0mm, 600V 230A, 1P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
Standard color: Grey and other colors also can be available.
■Wire Inlet:right angle
■Single Deck
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 230 | 600 / 5 | |
| Wire Range AWG | 4-4/0 | 4-4/0 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 830 / 232 | 1000 / 232 | 1000 / 232 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 95 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Steel / Nickel Plated | ||
| Conduction Board / Plating | Copper / Nickel Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 27 | ||
| Screw / Torque / lbf.in | M8 / 132-177 | ||
Competitive Advantage:
Applications:
Normally our products can be used in a lot of fields and industries, such as medical equipment, automation, industrial control, power supply, communication, electric lighting, security, invertors and converters and so on.
Our services cover all industries and reach all parts of the world.
