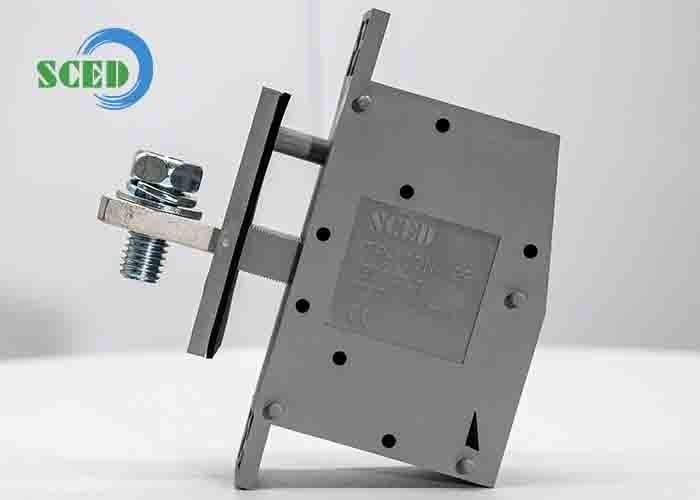

The Through Panel Terminal Blocks, also known as Terminal Junction Blocks, Panel Connector Blocks, or Through-wall Terminal Blocks, are essential components in electrical and electronic systems for creating secure connections between wires or cables. These terminal blocks are designed to provide a reliable and efficient solution for connecting and terminating various electrical circuits.
With a rated voltage of 600V, these Through Panel Terminal Blocks are suitable for a wide range of applications where high voltage requirements are necessary. The contact resistance of less than 8mΩ ensures minimal power loss and efficient transmission of electrical signals, making these terminal blocks ideal for critical electronic systems.
These Through Panel Terminal Blocks are designed to accommodate wires with stripping lengths of up to 24mm, allowing for easy installation and connection of cables within the specified length. The versatility of these terminal blocks is further enhanced by the option to choose from a range of poles, with configurations available from 1 to 24 poles to meet the specific requirements of different applications.
Manufactured with high-quality materials and precision engineering, these Through Panel Terminal Blocks are built to withstand the rigors of industrial environments and provide long-lasting performance. The durable construction of these terminal blocks ensures reliable connections and minimizes the risk of signal loss or electrical faults.
Whether used in control panels, power distribution systems, or other electrical applications, these Through Panel Terminal Blocks offer a safe and efficient solution for connecting wires and cables securely. The compact design of these terminal blocks allows for space-saving installation, making them suitable for installations with limited space constraints.
Installation of these Through Panel Terminal Blocks is straightforward, thanks to their user-friendly design and compatibility with standard wiring practices. The clear labeling and marking on the terminal blocks facilitate easy identification of connection points, reducing the risk of wiring errors and simplifying maintenance and troubleshooting tasks.
In conclusion, the Through Panel Terminal Blocks are reliable, high-performance components that provide a secure and efficient solution for connecting wires and cables in electrical and electronic systems. With their high-rated voltage, low contact resistance, and customizable pole configurations, these terminal blocks offer versatility and durability for a wide range of applications.
| Volt | 600V |
| Connection Type | Cage Clamp |
| Poles | 1-24 |
| Number Of Poles | 2-24 |
| Stripping Length | 24mm |
| Certifications | CE, RoHS |
| Screw | M4 |
| Operating Temperature | -40°C To 105°C |
| Type | Through Panel |
| Inflammability Class | UL94, V-0 |
When it comes to versatile and reliable electrical connections in various applications, the Through Panel Terminal Blocks by SCED are the go-to choice. These terminal blocks are designed for through panel mounting, providing a secure and efficient solution for connecting wires and cables in a wide range of scenarios.
Whether you need to establish connections in industrial control systems, power distribution panels, or equipment manufacturing, the SCED Through Panel Terminal Blocks are ideal for panel placement applications. With a sturdy construction and nickel-plated plating, these terminal blocks ensure a durable and long-lasting connection that meets the highest quality standards.
Thanks to their UL94V-0 flammability rating, these terminal blocks offer enhanced safety in scenarios where fire resistance is crucial. The cage clamp connection type further enhances the reliability of the connections, making them suitable for demanding environments where vibration and shock are present.
SCED's Through Panel Terminal Blocks come with CE and ISO9001 certifications, guaranteeing compliance with international quality and safety standards. With a minimum order quantity of 500 units and a supply ability of 100,000 pieces per day, these terminal blocks are readily available for large-scale projects and applications.
For pricing details, customers can get the latest price information directly from SCED. The packaging details include carton boxes for secure transportation and storage, ensuring that the terminal blocks reach their destination in perfect condition.
With a rated voltage of 600V, these terminal blocks are suitable for a wide range of voltage requirements, making them versatile for various electrical applications. The payment terms accepted by SCED include T/T, AliPay, and PayPal, offering flexibility and convenience for customers worldwide.
In summary, the SCED Through Panel Terminal Blocks are the perfect solution for panel connector blocks in diverse applications, providing a reliable, safe, and efficient way to establish electrical connections. With their high-quality construction, certifications, and compatibility with different scenarios, these terminal blocks offer a reliable solution for your electrical connection needs.
Product Customization Services for Through Panel Terminal Blocks:
Brand Name: SCED
Place of Origin: Jiangsu, Suzhou
Certification: CE, ISO9001
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Carton box
Delivery Time: 30 day(s)
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 100000pcs/day
Flammability Rating: UL94V-0
Plating: Nickel Plated
Contact Resistance: Less Than 8mΩ
Poles: 1-24
Certifications: CE, RoHS
Keywords: Panel Insertion Terminal Blocks, Panel Connector Blocks, Panel mounted terminal blocks
Our Through Panel Terminal Blocks product offers comprehensive technical support and services to ensure the smooth operation and proper installation of the terminal blocks. Our team of experts is available to assist with any product-related inquiries, troubleshooting, and guidance. We also provide training sessions and resources to help users maximize the functionality of the terminal blocks.
Product Name: Through Panel Terminal Blocks
Description: These through panel terminal blocks are designed for easy installation and secure connections.
Package Includes: Set of 10 through panel terminal blocks
Dimensions: 2.5cm x 1.5cm x 1cm
Shipping Method: Standard Shipping
Shipping Cost: $5.00
Q: What is the brand name of the Through Panel Terminal Blocks product?
A: The brand name is SCED.
Q: Where is the Through Panel Terminal Blocks product manufactured?
A: The product is manufactured in Jiangsu, Suzhou.
Q: What certifications does the Through Panel Terminal Blocks product have?
A: The product is certified with CE and ISO9001.
Q: What is the minimum order quantity for the Through Panel Terminal Blocks product?
A: The minimum order quantity is 500.
Q: What are the accepted payment terms for purchasing the Through Panel Terminal Blocks product?
A: The accepted payment terms are T/T, AliPay, and PayPal.
