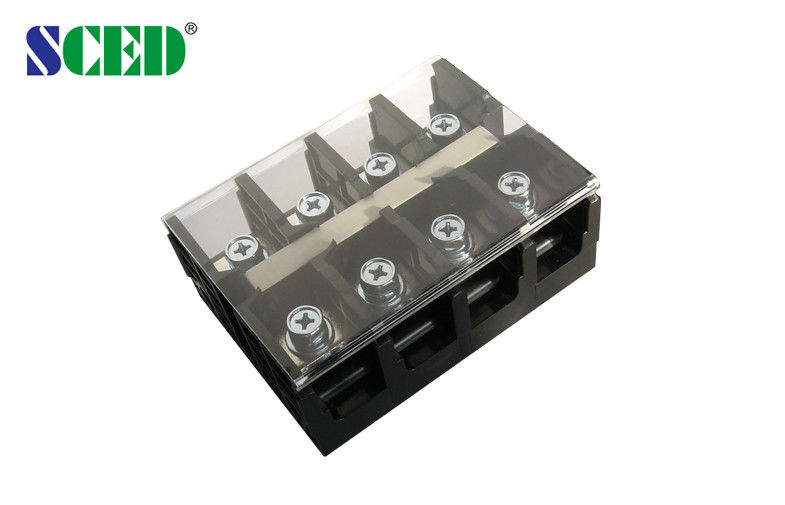

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Pitch
    31.00mm
  • Poles
    Any Poles Available
  • Rated Voltage
    600V
  • Rated Current
    200A
  • Insulation Material
    PC
  • Inflammability Class
    UL94, V-0
  • Color
    Black
  • Screw
    M8/Steel/Zinc Plated
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR200-02-BCM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp

  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
  • Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp
Get Price Contact Now

High Current Terminal Connector Block Electrical connectors 600V 200amp connector





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 200 600 / 200
Wire Range AWG 4/0-20 4/0-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /200 1000 / 200 1000 / 200
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 80
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 14-18
Screw Torque mm M8 / 31-40





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp 0

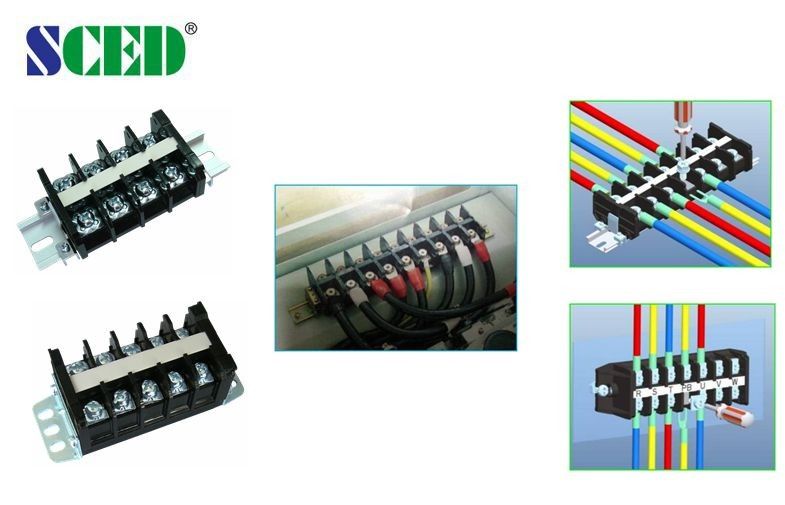

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response

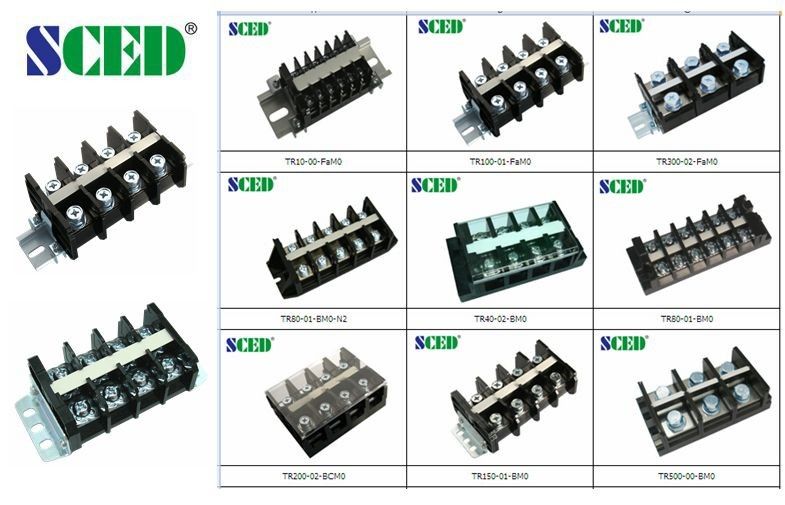

  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Electrical Connectors High Current Terminal Block 31MM Pitch 600V 200amp 1
