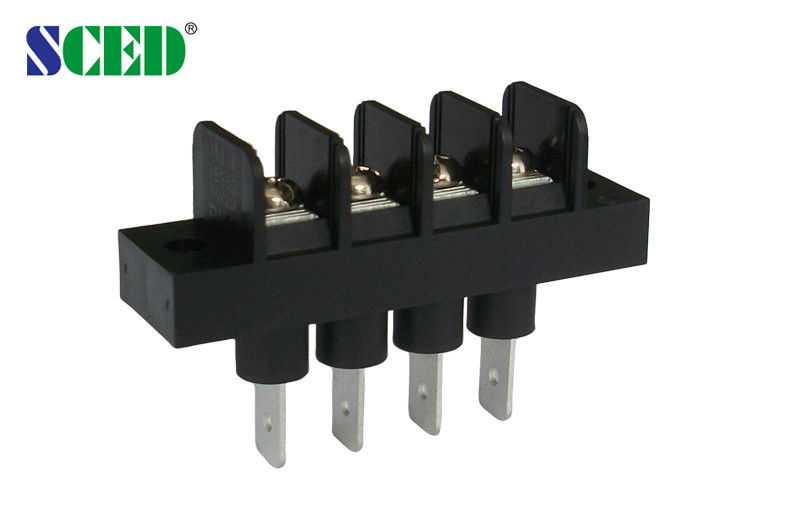

9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector

9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Pitch
    9.525mm
  • Rated Voltage
    300V
  • Rated Current
    20A
  • Available Poles
    2-16 P
  • Wire Range
    12-22 AWG
  • Material
    PBT
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB952-05F-D3
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector

  • 9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector
  • 9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector
  • 9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector
  • 9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector
Get Price Contact Now

PCB Fixing Screw Connector 9.525mm PBT Black Barrier Terminal Block 300V





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20   300 / 10
Wire Range AWG 12-22   12-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 800 / 32 1000 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.2x6.8
Stripping Length mm 8-9
Screw / Torque / lbf.in M 3.5 / 7-10





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector 0

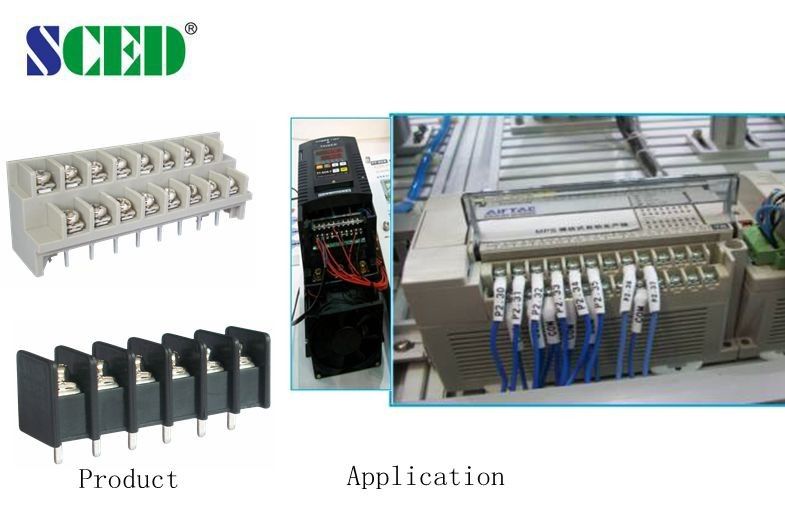

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector 1



9.525mm PBT Barrier Terminal Block 300V PCB Fixing Screw Connector 2
