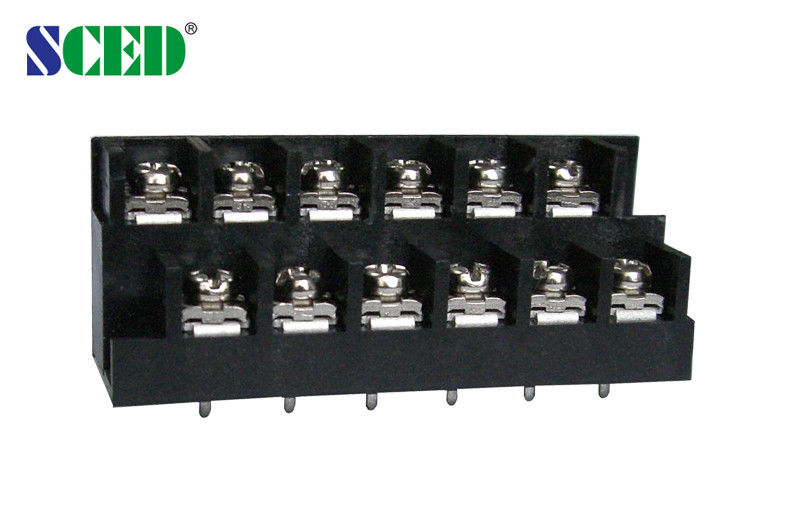

Double Levels Barrier Terminal Connection Block 8.70mm Black Screw Mount Connector
Detailed product Description:
Pitch 8.70mm, 250V 15A, 2*2P-14*2P, Barrier Terminal Blocks, Power Terminal Blocks
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□ Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available.

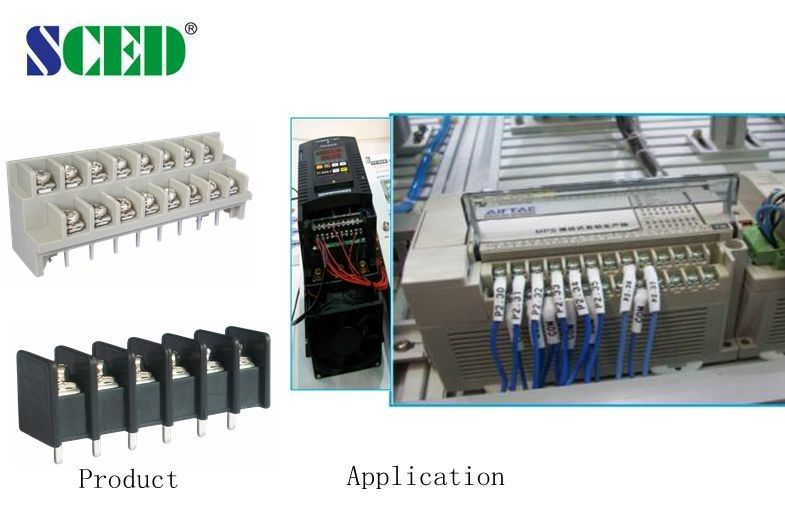

Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply
2. Electric Lighting, Industry Control, Automation, Rail Transportation
3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
250 / 15 |
|
250 / 10 |
|
Wire Range AWG |
14-26 |
|
14-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 24 |
400 / 24 |
630 / 24 |
|
Rated Surge Voltage KV |
5 |
5 |
5 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.6 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3.5 / 7-10 |
||
