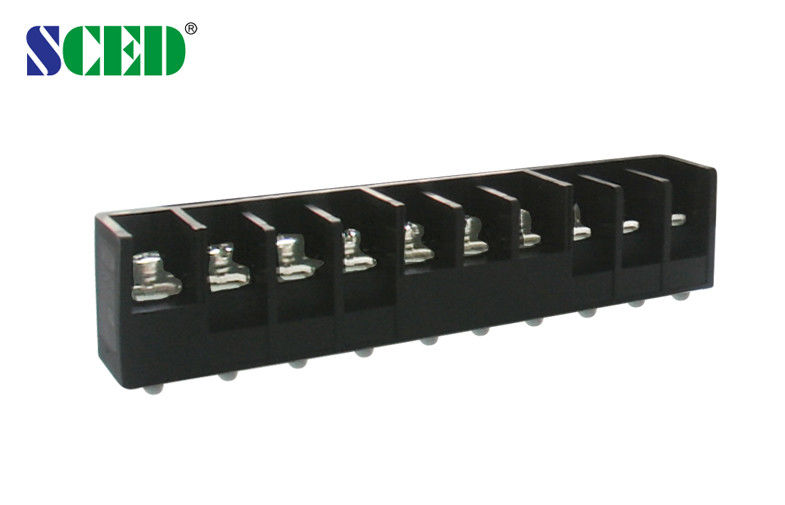

14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black

14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Pitch
    14.5mm
  • Poles
    10 Poles
  • Voltage
    600V
  • Current
    57A
  • Wire Range
    22-6 AWG
  • Screw
    M5
  • Torque
    18-20 Lbf.in
  • Stripping Length
    12-14mm
  • Insulation Material
    PBT
  • Terminal
    Brass
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TB1450a-07
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.19-0.38 PER POLE
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black

  • 14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black
  • 14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black
  • 14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black
Get Price Contact Now

Pitch 14.50mm Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black



Detailed product Description:



Pitch 14.50mm, 600V 57A, 10P, Barrier Terminal Blocks, Power Terminal Blocks



Wire Inlet:■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels:■Single Level; □Double levels; □Triple levels

Standard color: Black.

Other colors are also available, please refer to below How to Order and select the color you want.



How to order:

14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black 0



Applications:



Barrier terminal blocks are widely used in automation, frequency conversion, communication, power supply, PCB, Security etc.



Competitive Advantage:



  1. Good service and quick response
  2. Stable high quality and competitive price
  3. More than 1000 models for selection
  4. OEM and ODM service

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 57 600 / 57 600 / 5
Wire Range AWG 22-6 22-6 22-6
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm 2.4x5.2
Stripping Length mm 12-14
Screw / Torque / lbf.in M 5 / 18-20



14.50mm Pitch Barrier Terminal Block 10 Poles 600V 57A Power Terminal Blocks Black 1

Tags:

electrical terminal block

barrier type terminal block

pcb terminal blocks
