pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp

pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Pitch
    7.62mm
  • Rated Current
    10A/ 15A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    14-22 AWG
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-17-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp

  • pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp
  • pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp
  • pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp
Get Price Contact Now

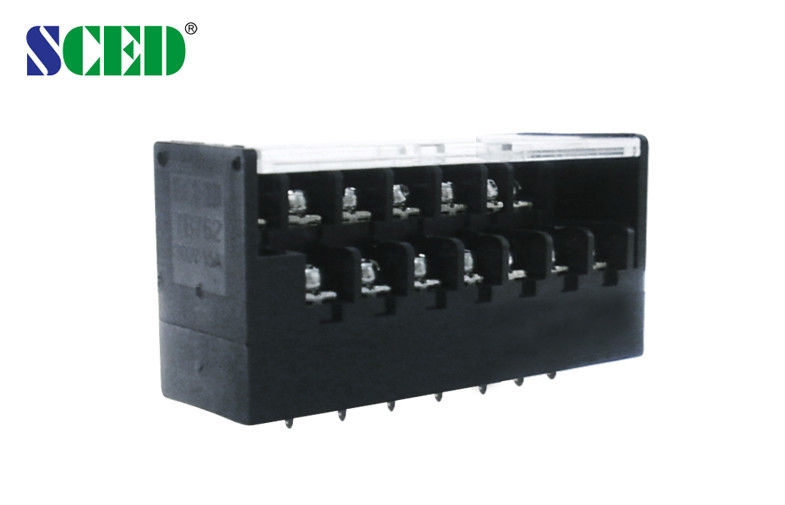

pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp



Detail:



This product make up by two parts. One is male type, another is female type.



Two row screw connector



Parameter:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15



300 / 10

Wire Range                                AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current               V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                   KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.7

Stripping Length                      mm

7-8

Screw / Torque                     / lbf.in

M 3 / 5-7







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp 0





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Drawing Photo:



pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp 1



pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp 2



 pluggable Male And Female Type Pcb Screw Terminal Block 7.62mm Clamp 3





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
