10 Pin Barrier Terminal Block Screw Terminal Block Connector Stable
Quick Detail:
Type: Barrier Screw
Pitch: 7.62mm
Rated voltage: 300V
Rated Current: 15A
Wire range: 14-22 AWG
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Description:
■Right angle wire inlet;
■Triple levels
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||

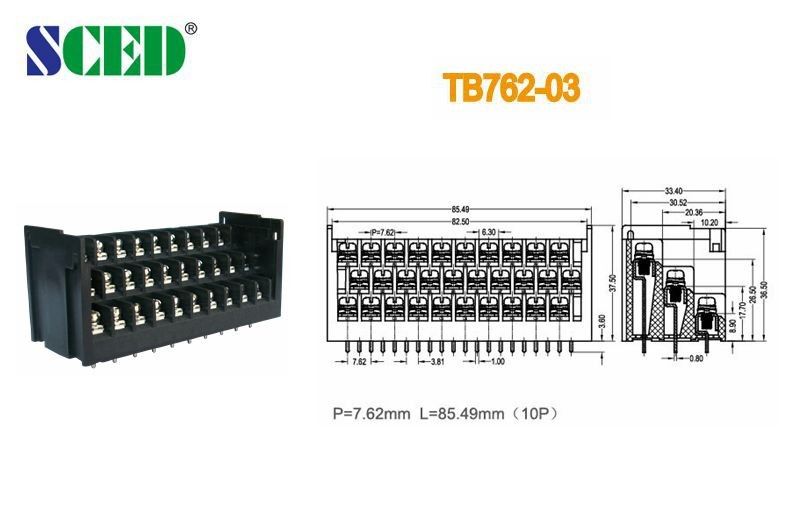

Drawing and Photos
Standard color: Black. Other colors also available, please refer to below How to Order and
select the color you want.
How to order:

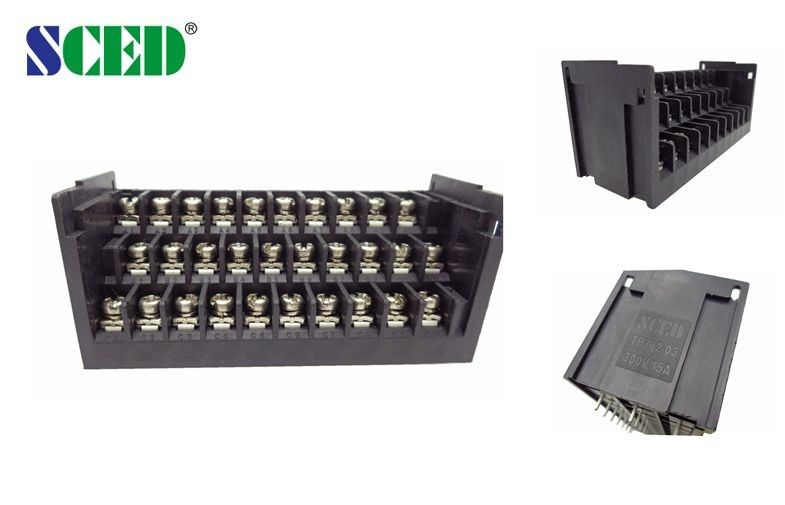

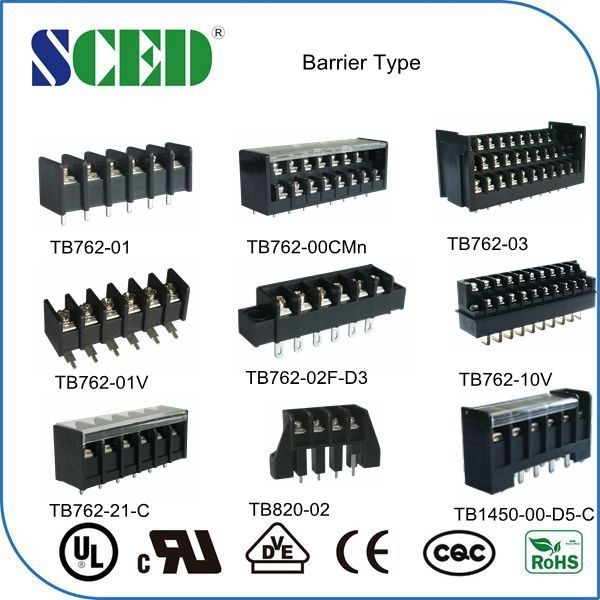

Detail Photos:
Our services cover all industries and reach all parts of the world.
