2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector

2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector

Products - Panel Mount Terminal Block
  • Highlight

    panel mount terminal block connector

    ,

    pcb mount terminal blocks

  • Type
    Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block
  • Pitch
    16.5mm
  • Number Of Contacts
    2P-16P
  • Wire Range
    4-22
  • Rated Voltage
    600V
  • Rated Current
    85A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-16N-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector

  • 2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector
  • 2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector
  • 2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector
Get Price Contact Now

2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Feed through terminal blocks, Feed through terminal connectors, penal mount terminal block, Electrical terminal Blocks


How to order:
2-16 Poles Panel Mount Terminal Block 600V 85A Single Level Screw Connector 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 85

600 /85

600 / 5

Wire Range                                AWG

4-22

4-22

4-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current                V/A

800 / 85

1000 / 85

1000 / 85

Rated Surge Voltage                     KV

8

8

8

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board Plating

Copper / Nickel Plated

Clamp Cage Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 5 / 15-18



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

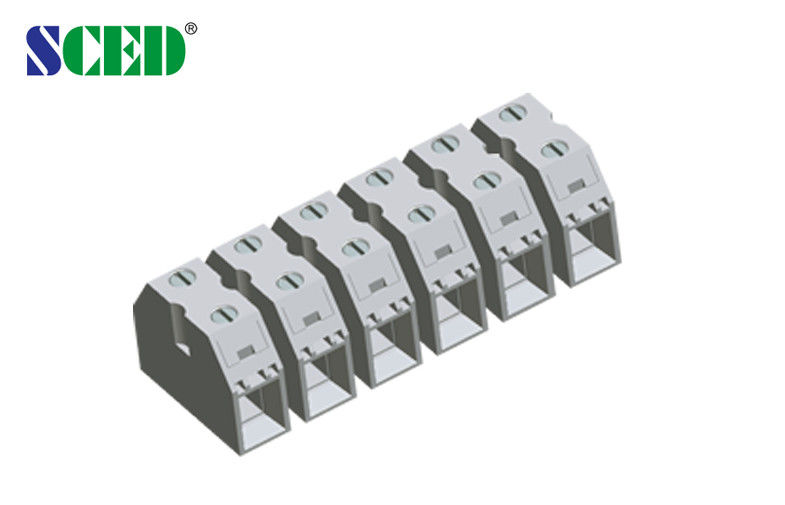

Drawing Photo:
