45.00mm High Current Terminal Block Mount Din Rail Screw Terminal

45.00mm High Current Terminal Block Mount Din Rail Screw Terminal

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Pitch
    45.00mm
  • Poles
    Any Poles
  • Color
    Black
  • Material
    PC
  • Voltage
    600V
  • Current
    300A
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR300-01-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

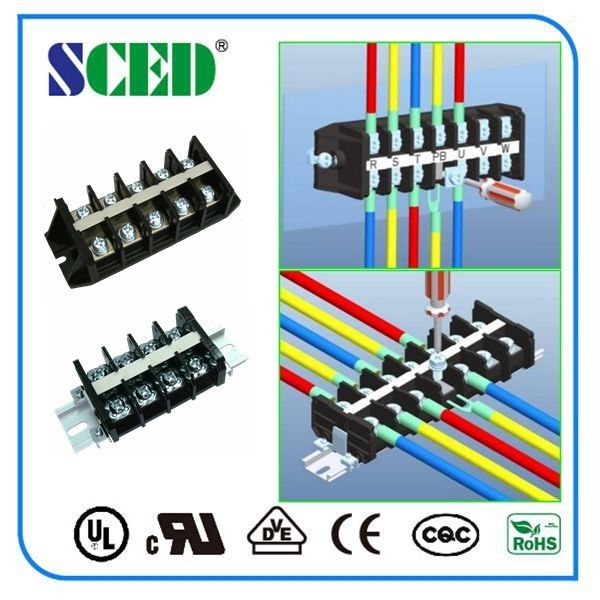

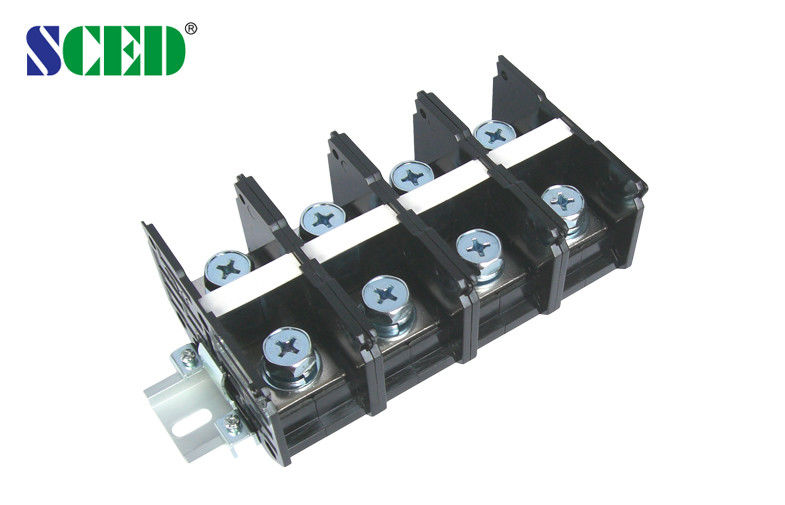

45.00mm High Current Terminal Block Mount Din Rail Screw Terminal

  • 45.00mm High Current Terminal Block Mount Din Rail Screw Terminal
  • 45.00mm High Current Terminal Block Mount Din Rail Screw Terminal
  • 45.00mm High Current Terminal Block Mount Din Rail Screw Terminal
Get Price Contact Now

45.00mm High Current Terminal Block Mount Din Rail Screw Terminal



Details:



Pitch: 45.00mm

Color: Black

Current: 300A

Voltage: 600V

Poles: Any poles

Wire Range: 4-350kcmil



Parameter Data



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 300 600 / 300
Wire Range AWG 4-350kcmil 4-350kcmil
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /300 1000 / 300 1000 / 300
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 150
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 19-21
Screw Torque mm M10 / 50-60





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





45.00mm High Current Terminal Block Mount Din Rail Screw Terminal 0





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Drawing Photo:

45.00mm High Current Terminal Block Mount Din Rail Screw Terminal 1

45.00mm High Current Terminal Block Mount Din Rail Screw Terminal 2
