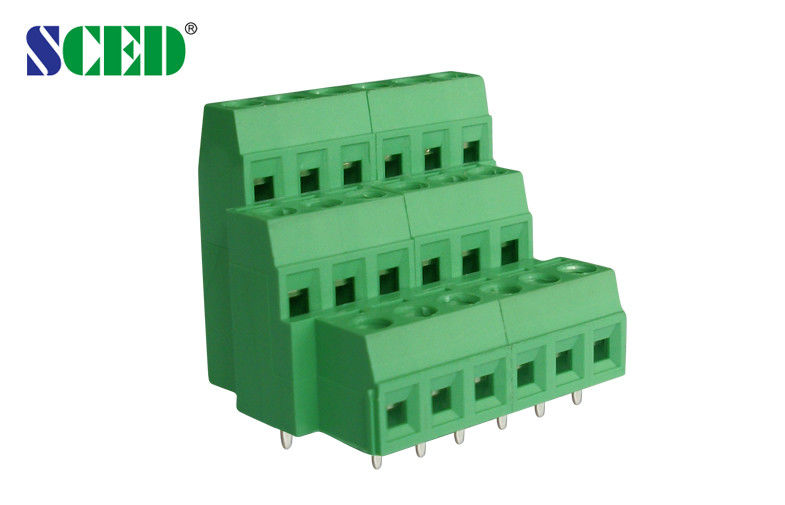

Triple Level Pluggable Terminal Block 5.08mm Terminal Block Connector
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; □Double decks; ■Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 10 |
|
300 / 10 |
|
Wire Range AWG |
12-26 |
|
12-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
1.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
Stripping Length mm |
6-7 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Drawing photo:

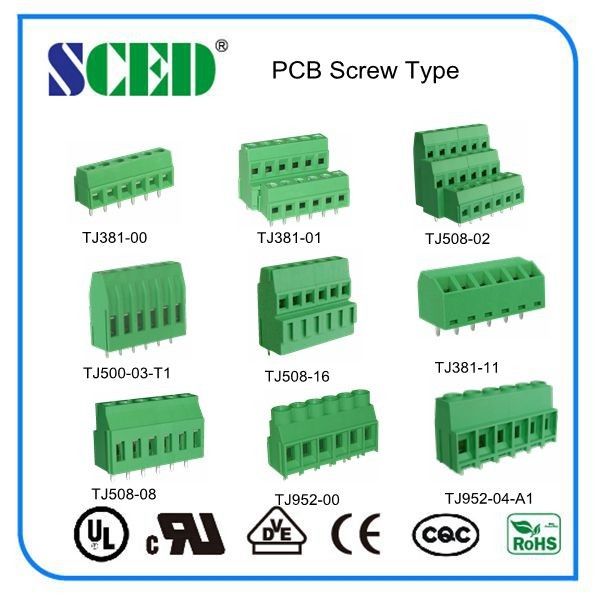

Photos:
