Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P

Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P

Products - Barrier Terminal Block
  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Type
    Barrier
  • Color
    Black
  • Pitch
    9.525mm
  • Current
    20A
  • Volt
    300V
  • Plastic
    PA66
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC,VDE etc.
  • Model Number
    TB952-05-D3
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.067-0.124
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P

  • Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P
  • Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P
Get Price Contact Now



Black Pitch 9.525mm Terminal Block Barrier 300v 20A 2P - 22P



Detailed product Description:

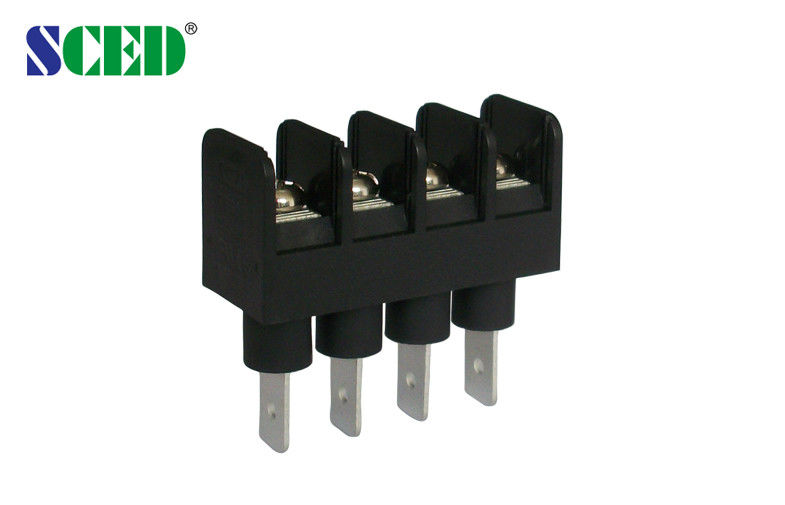

Pitch 9.525mm, 300V 20A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet

■Single Level

Standard color: Black.

Other colors also available. Such as Green, Grey, Yellow and White etc.



Applications:

1. It's often used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

2. And it can used by the filed of Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on as well.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/20



300/10

Wire Range                       AWG

12-22



12-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

800 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

1.2x6.8

Stripping Length                    mm

8-9

Screw / Torque                    / lbf.in

M 3.5 / 7-10



Competitive Advantage:



1. OEM and ODM service can be provided

2. 12 years of experince in desinging, manufacturing and marketing

3. Good quality with competitive price

4. Full range products for selection.
