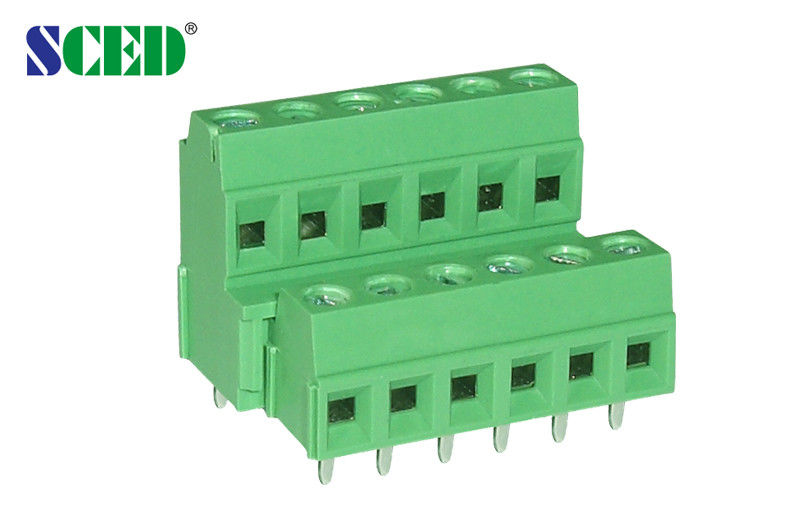

Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P

Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P

Products - PCB Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Level
    Double Levels
  • Pitch
    3.81mm
  • Color
    Green
  • Current
    10A
  • Voltage
    300V
  • Screw
    Steel
  • Plastic
    PA66
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ381-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.054-0.108 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P

  • Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P
  • Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P
Get Price Contact Now



Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P



Detailed product Description:



Pitch 3.81mm, 300V 10A, 2P-28P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



■ Right angle wire inlet

■ Double decks

Standard color: Green.

Other colors also available.



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0



Competitive Advantage:



1. 10 main series and more than 1000 models for selection

2. Stable good quality

3. Flexible to design the exact part per customers' demand

4. Resonable price

5. Good servide.
