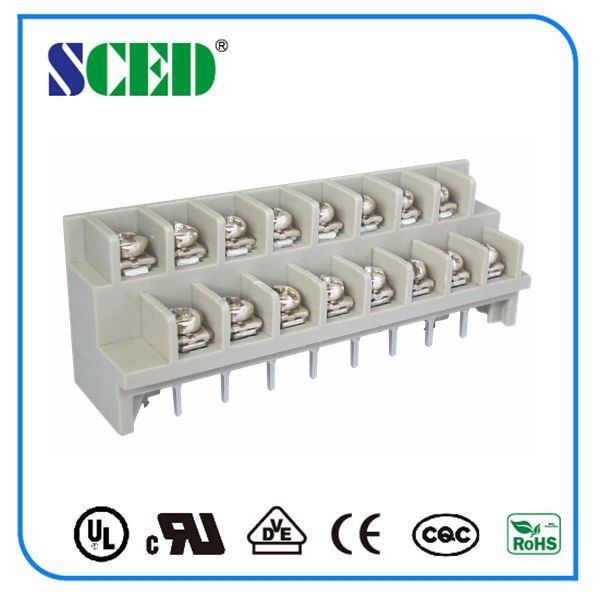

Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles

Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Color
    Grey
  • Pitch
    7.62mm
  • Voltage
    300V
  • Current
    15A
  • Plastic
    PBT
  • Screw
    Steel
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Poles
    4-20 Poles
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CQC,VDE,CE etc.
  • Model Number
    TB762-04
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.061-0.122 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles

  • Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles
  • Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles
Get Price Contact Now

Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles



Detailed product Description:



Pitch 7.62mm, 300V 15A, 4*2P-20*2P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/15



300/10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
