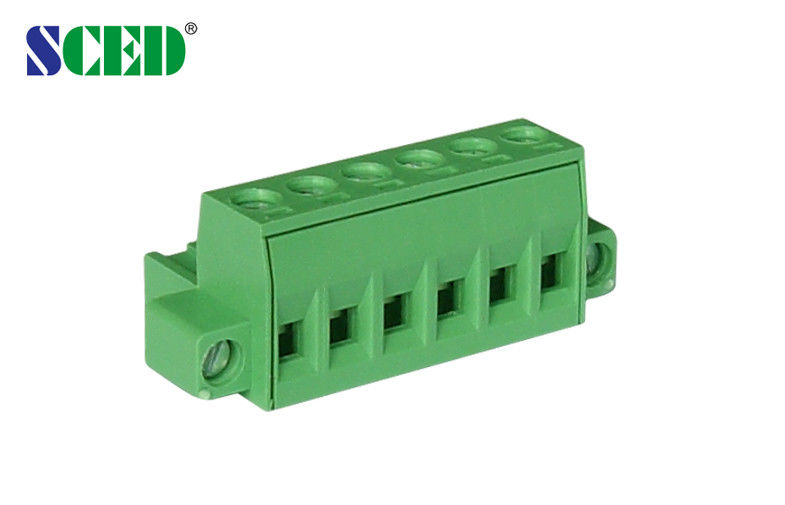

Green Electrical Terminal Blocks PA66 Brass Pitch 5.08mm 300V 18A 2 - 22 Poles

Green Electrical Terminal Blocks PA66 Brass Pitch 5.08mm 300V 18A 2 - 22 Poles

Products - Pluggable Terminal Block
  • Highlight

    pluggable terminal block connector

    ,

    electrical terminal blocks

  • Color
    Green
  • Type
    Pluggable
  • Poles
    2-22 Poles
  • Pitch
    5.08mm
  • Current
    18A
  • Plastic
    PA66
  • Contactor
    Phosphor Bronze
  • Plating
    Zinc Plated
  • Screw
    Steel
  • Clamp Cage
    Brass
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,VDE, CQC etc.
  • Model Number
    TP508P-00F
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.045-0.076 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Green Electrical Terminal Blocks PA66 Brass Pitch 5.08mm 300V 18A 2 - 22 Poles

  • Green Electrical Terminal Blocks PA66 Brass Pitch 5.08mm 300V 18A 2 - 22 Poles
  • Green Electrical Terminal Blocks PA66 Brass Pitch 5.08mm 300V 18A 2 - 22 Poles
Get Price Contact Now

Green Pluggable Terminal Block PA66 Brass Pitch 5.08mm 300V 18A  2-22 Poles



Detailed product Description:



Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Deck;  □Double decks;  □Triple decks

This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/18



300/18

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Contactor / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
