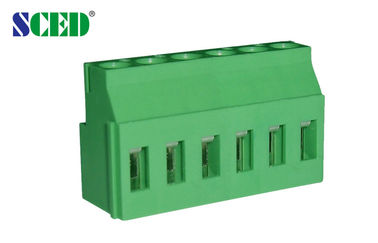

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass

Products - PCB Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Pitch
    5.08mm
  • Poles
    Any Poles Available
  • Volt
    300V
  • Current
    10A
  • Insulation Material
    PA66
  • Imflammability Class
    UL94 V0
  • Clamp Cage
    Brass
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE, UL, CUL, CQC, VDE etc.
  • Model Number
    TJ508-04
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.034-0.068 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass

  • Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
  • Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
Get Price Contact Now

Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass





Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
