5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp

5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp

Products - Plug In Terminal Block
  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Volt
    300V
  • Current
    18A
  • Color
    Green
  • Pitch
    5.08mm
  • Insulation Material
    PA66
  • Poles
    2-22 Poles
  • Material
    Brass
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE
  • Model Number
    TP508H-01V
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.03-0.15 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5.-20 Work Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp

  • 5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp
  • 5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp
  • 5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp
  • 5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp
Get Price Contact Now

5.08mm Spacing Brass Power Terminal Block Connector UL94 V0 300V 18amp



Detailed product Description:

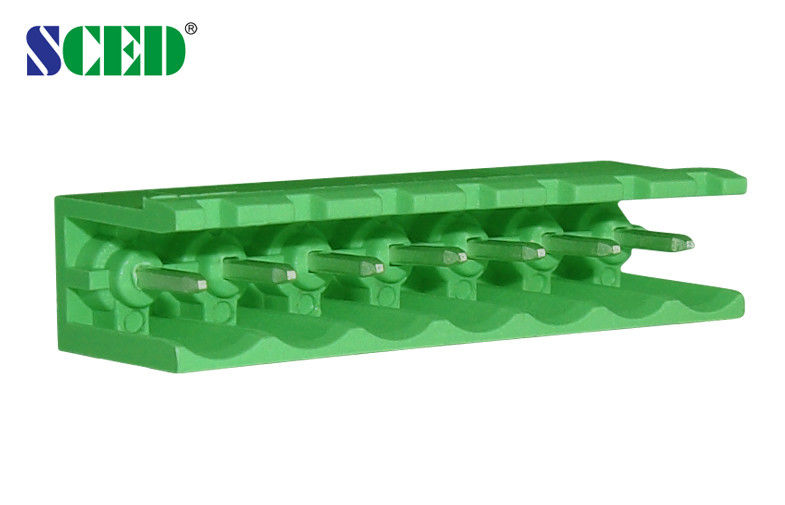

Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double Levels;  □Triple Levels



This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

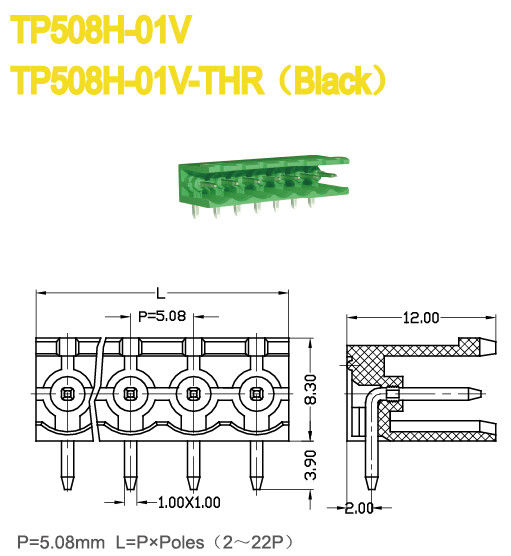

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/18



300/18

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.4

Pin Dimension                      mm

1.0 x 1.0



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
