300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical

300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical

Products - Plug In Terminal Block
  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Material
    Brass
  • Level
    Single Level
  • Wire Inlet
    Vertical Wire Inlet
  • Color
    Green
  • Pin Dimension
    0.8 X 0.8mm
  • Insulation Material
    PA66
  • Inflammability Class
    UL94, V-0
  • PCB Hole Diameter
    φ1.2mm
  • Pitch
    3.81mm
  • Rated Voltage / Current
    300V 8A
  • Place of Origin
    Shenzhen China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TP381H-00
  • Minimum Order Quantity
    500 pcs
  • Price
    USD 0.01-0.19 per pole
  • Packaging Details
    Normally, one master carton packs 16 inner boxes inside. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each month

300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical

  • 300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical
  • 300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical
  • 300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical
  • 300V 8A Plug In Terminal Block Pitch 3.81mm Male Sockets Vertical
Get Price Contact Now

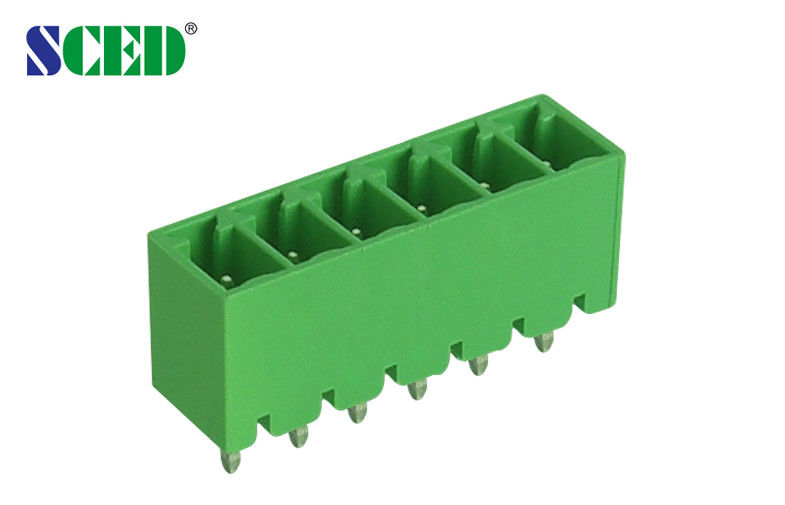

300V 8A Power Distribution Terminal Block Pitch 3.81mm Male Sockets Vertical



Detailed product Description:



Header, Male Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double Levels;  □Triple Levels



This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04



Standard color: Green. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication

2.Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

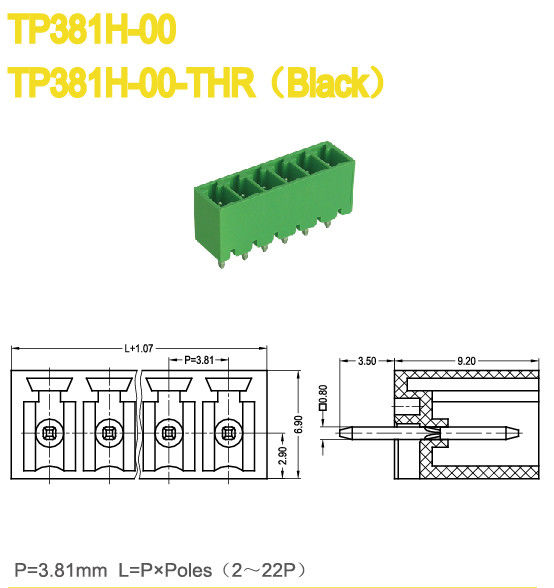

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.2

PinDimension                     mm

0.8 x 0.8





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Good service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
