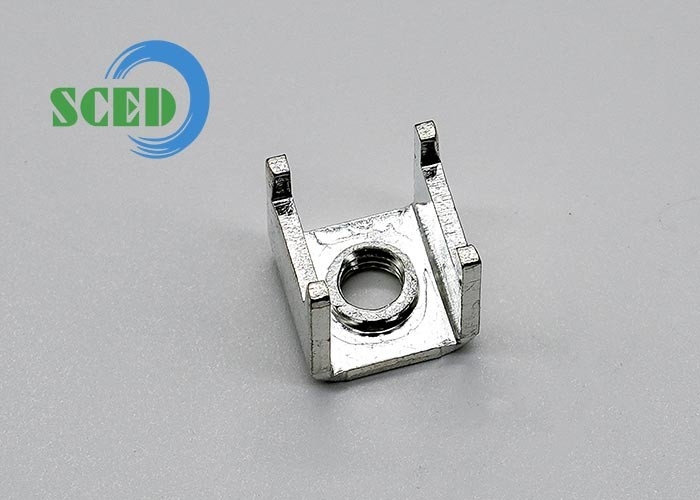

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated

Products - Terminal Block Accessories
  • Highlight

    80A PCB Terminal Block Accessories

    ,

    M5 Steel Screw Terminal Block Accessories

    ,

    10.00*10.50mm PCB Terminal Block Accessories

  • Rated Current
    80A
  • Screw Material
    Steel, Nickel Plated
  • Terminal Body
    Brass, Tin Plated
  • Torque
    18 Lbf.in
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Screw
    M5
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Center Space
    10.00*10.50mm
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Suzhou,China
  • Brand Name
    SCED
  • Certification
    CE,UL etc.
  • Model Number
    AO-15/4J-N1
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.087-0.175 Per Pc
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10000000 Pole/Poles per Month

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated

  • 80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated
  • 80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated
  • 80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated
Get Price Contact Now

80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories



Applications:



1.PCB, Frequency Converters, Server Site, Switch

2.Power Supply, Electric Lighting, Industry Control

3.Automation, Rail Transportation, Communication

4.Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Detailed product Description:



Brass Electrical Components PCB Terminal Accessories



Our products use good material to produce, such as high quality brass, copper and plating tin, zinc, nickel and so on.

After mounting on PCB, metal terminal accessoreis can be worked as a terminal block. Some simple metal parts accessories will work as the jumper and other assistant functions.



Competitive Advantage:



  1. More than 13 years of experience
  2. Strong R&D abilities
  3. Stable high quality
  4. Competitive price
  5. More than 1000 models for selection
  6. OEM and ODM service
  7. Quick response and good service



Spec.:

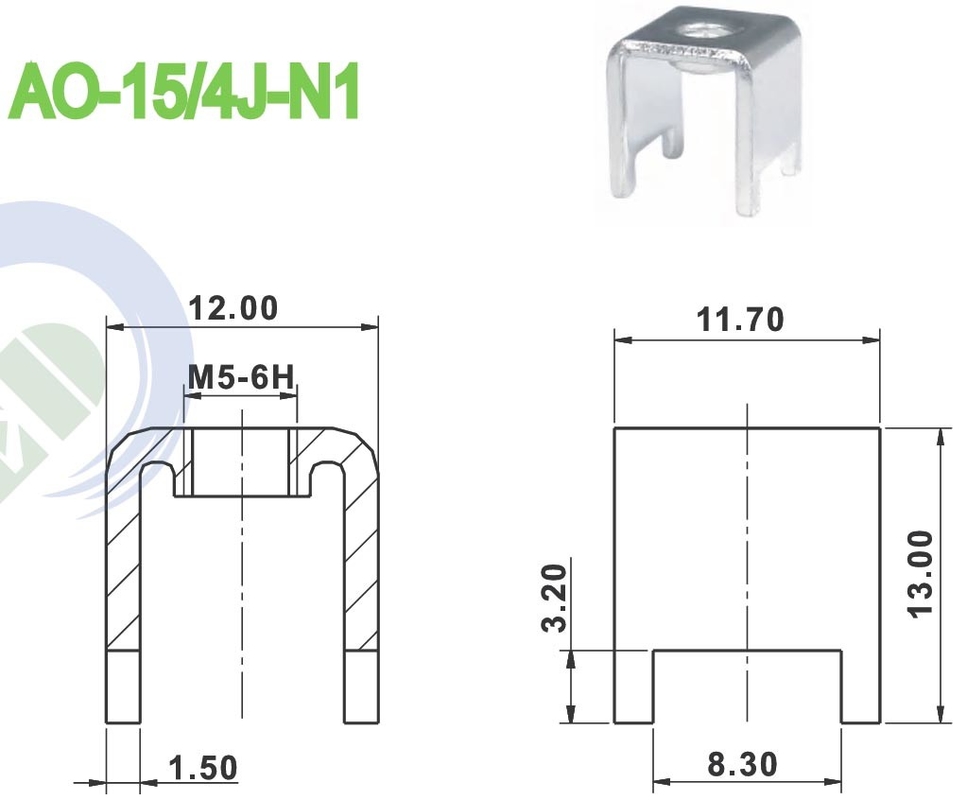

Model AO-15/4J-N1
Technical Data 　
Center Space 10.00*10.50mm
Rated Current 80A
Screw M5,Steel,Nickel Plated
Terminal Body Brass, Tin Plated
Screw Torque 18 Ibf·in


80A 10.00*10.50mm PCB Brass M5 Steel Screw Terminal Block Accessories Nickel Plated 0
