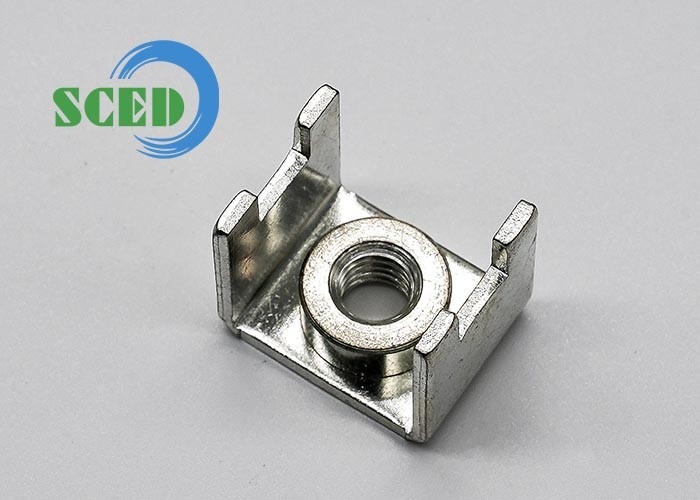

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories

  • Highlight

    100A M6 Steel Screw

    ,

    10.00*16.50mm M6 Steel Screw

    ,

    Electrical Terminal Block Accessories

  • Center SPace
    10.00*16.50mm
  • Screw
    M6
  • Terminal Body
    Brass
  • Screw Torque
    18 Lbf.in
  • Rated Current
    100A
  • Screw Plating
    Nickel Plated
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    AO-15/4J-N5
  • Minimum Order Quantity
    1000 pcs
  • Price
    USD 0.05-0.10 PER PC
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories



Detailed product Description:



Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Spec.:

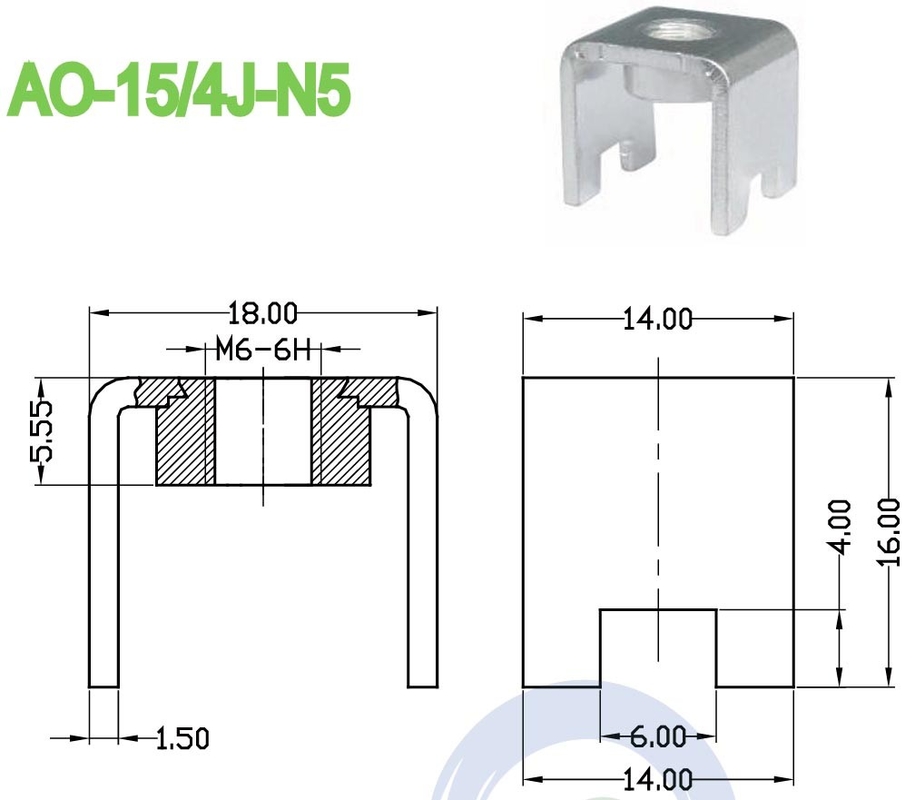

Model AO-15/4J-N5
Technical Data
Center Space 10.00*16.50mm
Rated Current 100A
Screw M6,Steel,Nickel Plated
Terminal Body Brass, Tin Plated
Screw Torque 18 Ibf·in




Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories 0



Competitive Advantage:



  1. OEM and ODM service can be provided
  2. R&D ability
  3. More than 1000 models
  4. High quality and competitive price
  5. Good service
