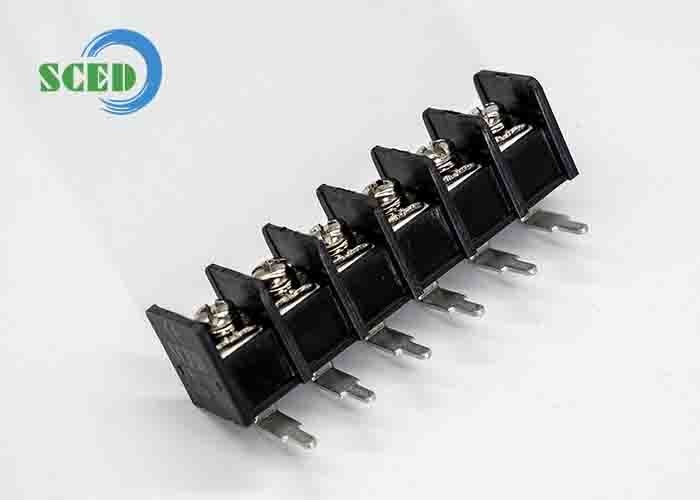

Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block

Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block

Products - Barrier Terminal Block
  • Highlight

    300V Barrier Terminal Block

    ,

    22P Barrier Terminal Block

    ,

    10-18AWG Power Terminal Block

  • Wire Gauge
    10-18 AWG
  • Stripping Length
    9-10
  • Pole
    2P-22P
  • Inflammability
    UL94 V0
  • Temprature Range
    -40 +105 C C
  • Wire Connection
    Screw
  • Color
    Black
  • Plastic
    PBT
  • Torque
    10-13 Lbf.in
  • Metal Parts
    Brass
  • Type
    Barrier
  • Voltage Rating
    300V
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB1100-01V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block

  • Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block
  • Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block
  • Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block
Get Price Contact Now

Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block





Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30   300 / 10
Wire Range AWG 10-18   10-18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 41 630 / 41 800 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13





Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 13.00mm 300V 30A 2-22P Barrier Terminal Block 10-18AWG Power Terminal Block 2
