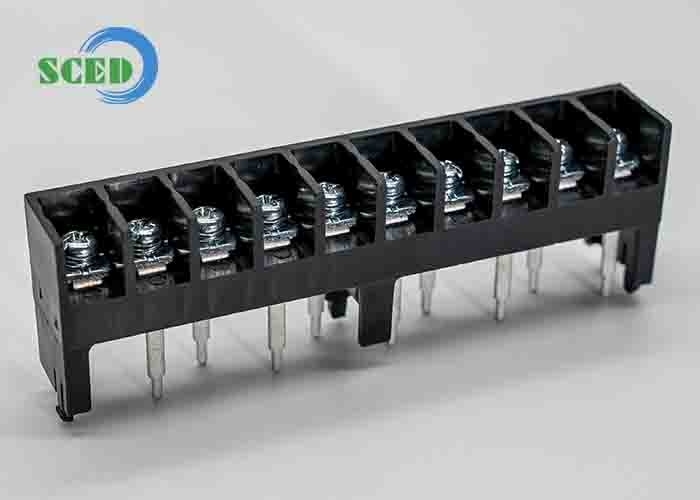

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

Products - Barrier Terminal Block
  • Highlight

    M4 Steel Screw Power Terminal Block

    ,

    Single Level Barrier Terminal Block

    ,

    300V 20A Barrier Terminal Block

  • Pitch
    11.00mm
  • Number Of Poles
    10
  • Housing
    PBT.UL94V-0
  • Type
    Barrier
  • Voltage Rating
    600 V
  • Wire Connection
    Screw
  • Pcb Mount
    PCB Inserting And Soldering
  • Levels
    Single Level
  • Number Of Levels
    1
  • Key Words
    Screw Clamp Connector
  • Sample
    Free
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB1100-05
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications

  • Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications
  • Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications
  • Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications
Get Price Contact Now

Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 30   600 / 5
Wire Range AWG 10-22   10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13





Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:





Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Single Level Barrier Terminal Block 11.00mm 300V 20A 10P M4 Steel Screw Power Terminal Block for High Voltage Applications 2
