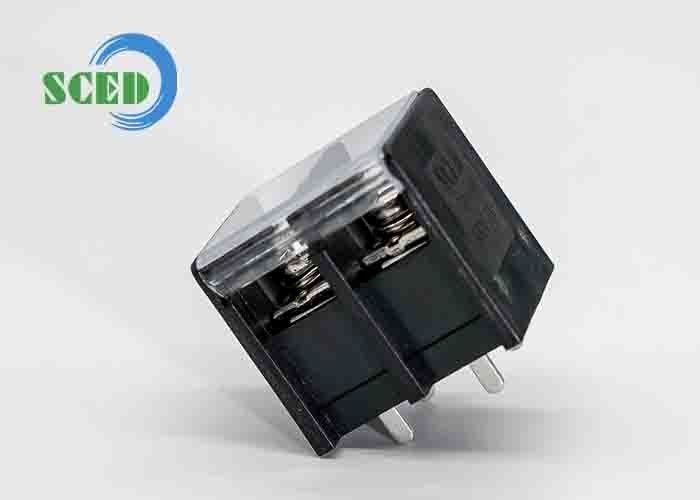

Barrier Type Terminal Block For Power Supply M4 20A 300V Screw Strip Terminals Connectors
Quick Details:
Pitch: 11.00mm
Poles: 2P-24P
Voltage/ Current: 300V/20A
Wire range: 10-24 AWG
Spec.
1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
2. With or without cover, one or two rows, from one level to three levels, etc.
3. Materials: Plastic housing is PBT(UL94 V-0)
4. Operating temperature: -40℃~+120℃
5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

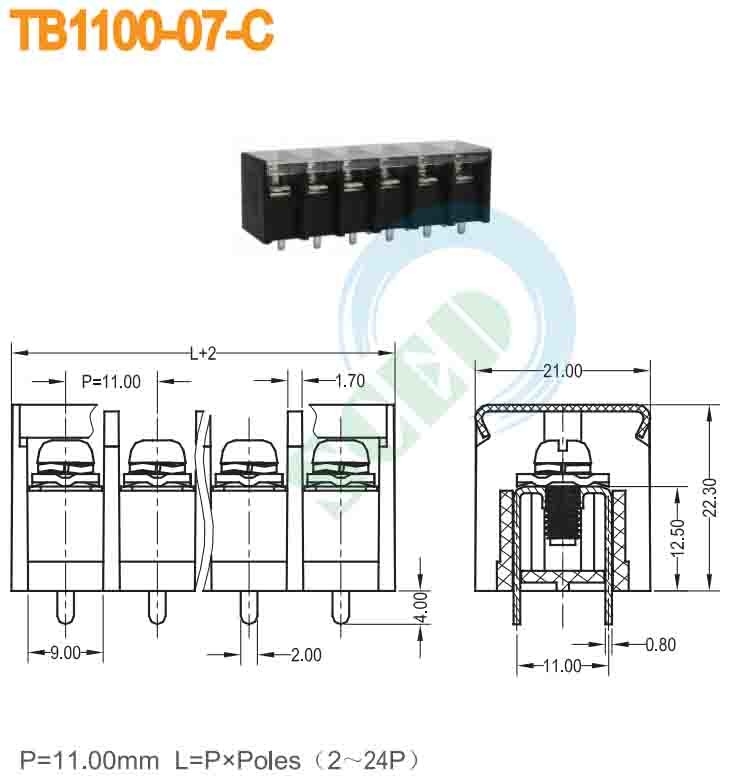

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 20 |
|
300 / 10 |
|
Wire Range AWG |
10-24 |
|
10-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 32 |
800 / 32 |
1000 / 32 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
6 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.5 |
||
|
Stripping Length mm |
11-12 |
||
|
Screw / Torque / lbf.in |
M4 / 10-12 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
