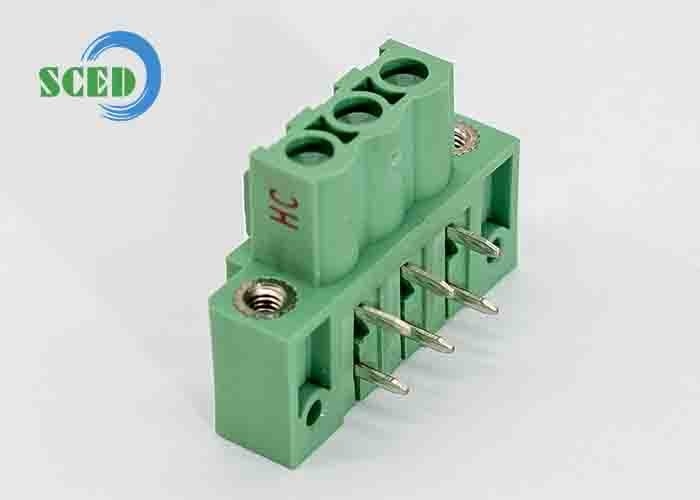

Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal

Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal

Products - Plug In Terminal Block
  • Highlight

    20P Plug In Terminal Block

    ,

    5.08mm Plug In Terminal Block

    ,

    18A Plug In Terminal Block

  • Operating Temperature
    -40°C To +105°C
  • Inflammability Class
    UL94-V0
  • Pcb Hole Diameter
    φ1.5mm
  • Terminal Material
    Copper
  • Pin Dimension
    0.4 X 1.1mm
  • Insulation Material
    PA66
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-10VF-D8
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal

  • Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal
  • Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal
  • Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal
Get Price Contact Now

Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal



■Single Level; □Double Levels; □Triple Levels







Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal 0

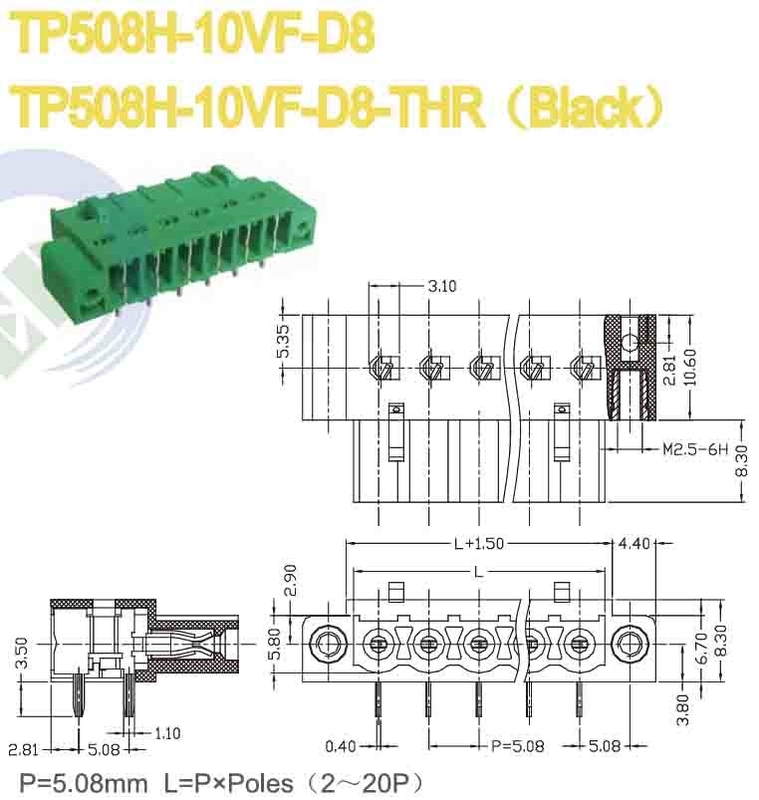

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 24 320 / 24 630 / 24
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Copper / Tin Plated
Other Data
PCB Hole Diameter mm 1.5
Pin Dimensions mm 0.4*1.1





Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Plug-in Terminal Block Plug Female Sockets 5.08mm 2-20P 300V 18A Copper Terminal 2
