Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block

Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block

Products - Pluggable Terminal Block
  • Highlight

    300V Pluggable Terminal Block

    ,

    PA66 Pluggable Terminal Block

    ,

    18A Pluggable Terminal Block

  • Pcb Hole Diameter
    1.4mm
  • Voltage
    300V
  • Use To
    PCB
  • Insulation Material
    PA66
  • Poles
    2-14 Poles
  • Terminal
    Brass
  • Current Rating
    18A
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-76VF
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block

  • Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block
  • Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block
  • Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block
Get Price Contact Now

Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block





■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels



This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F, TP381P-04F



Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block 0

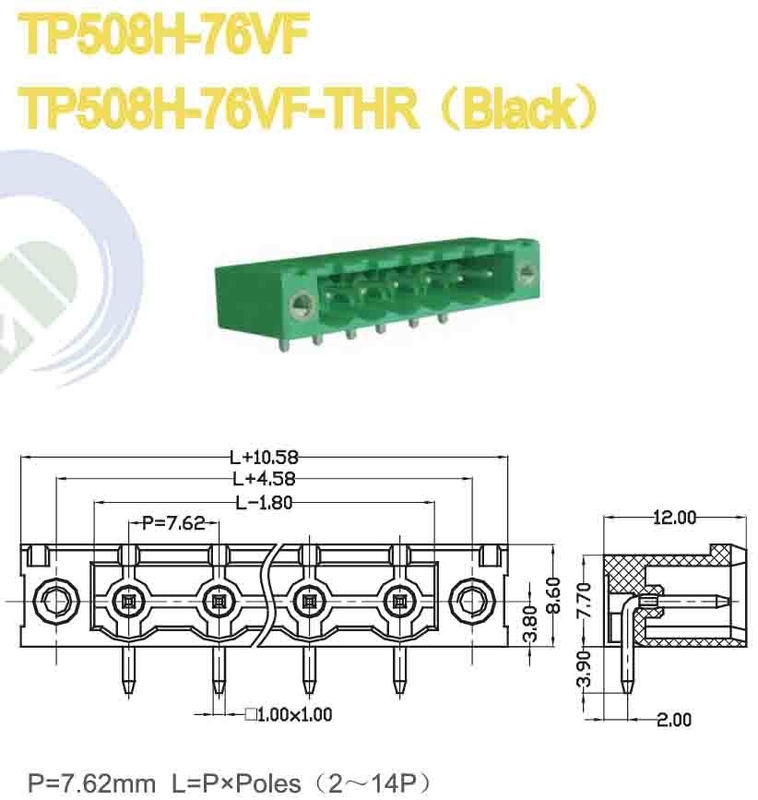

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0(THR:PA46 UL94,V-0)
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm

1*1

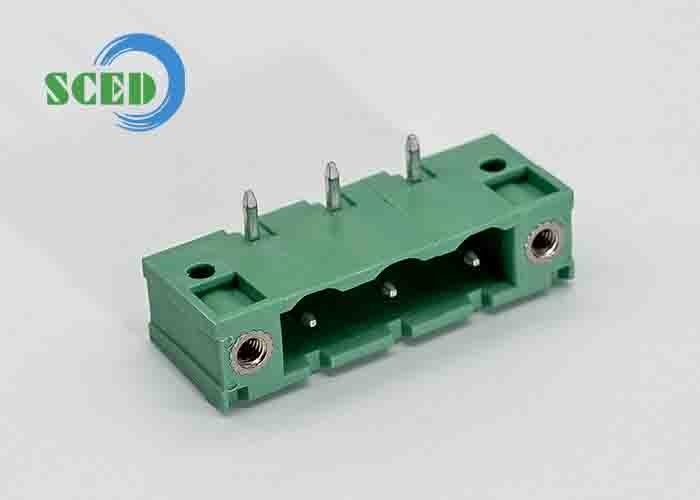

Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Male Sockets Header Pitch 7.62mm 300V 18A PA66 Pluggable Terminal Block 2
