High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

Products - High Current Terminal Block
  • Highlight

    High Current Terminal connector 150A

    ,

    High Current Terminal connector 600V

    ,

    High Current Terminal connector PA66

  • Wire Connection
    Direct
  • Inflammability Class
    UL94, V-0
  • Operating Temperature
    -40°C To 105°C
  • Rated Current
    150A
  • Pitch
    25.00mm
  • Conduction Board
    Cooper/Nickel Plated
  • Voltage
    600V
  • Wire Range
    1/0-20 AWG
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR150-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

  • High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8
  • High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8
  • High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8
Get Price Contact Now

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8

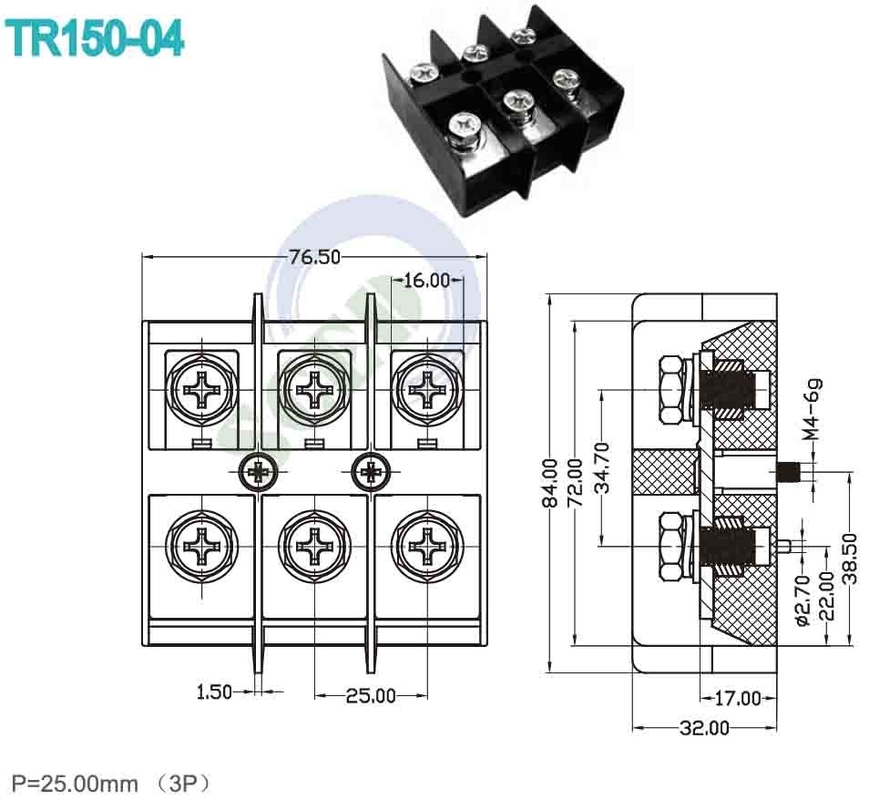

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 150
Wire Range AWG 1/0-20 1/0-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 50
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board/ Plating Copper /Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 18-19
Screw Torque mm M8 / 30-32

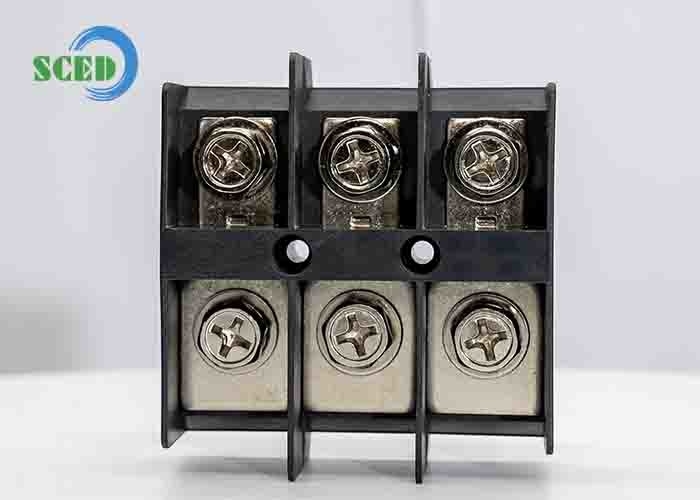

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8 1





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

High Current Terminal connector Pitch 25.00mm 600V 150A PA66 3P M8 2
