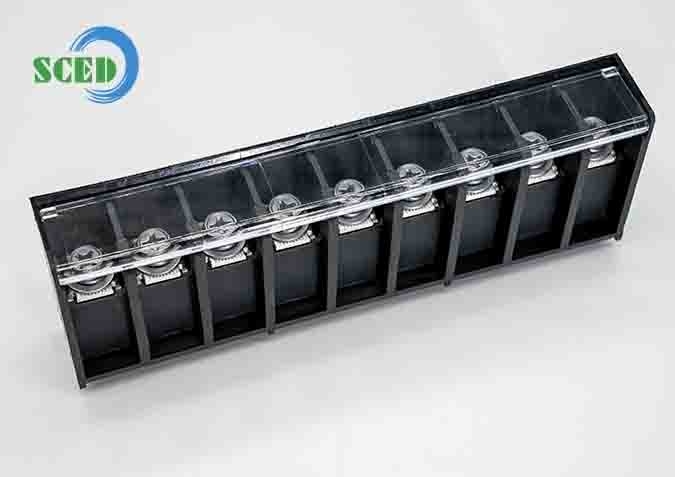

Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block

Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block

Products - Barrier Terminal Block
  • Highlight

    barrier terminal block connector

    ,

    600V 75A Barrier Terminal Block

    ,

    Power M6 Terminal Block

  • Wire Range
    26-4 AWG
  • Stripping Length
    16-18mm
  • Insulation Material
    PBT
  • Poles
    2 Poles
  • Plastic
    PBT
  • Inflammability
    UL94 V0
  • Approvals
    CE, RoHS
  • Operating Temperature
    -40°C To +105°C
  • Rated Voltage
    600V
  • Screws
    M6.Steel.Zinc Plated
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TB2000-00-C
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block

  • Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block
  • Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block
  • Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block
Get Price Contact Now

Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block​

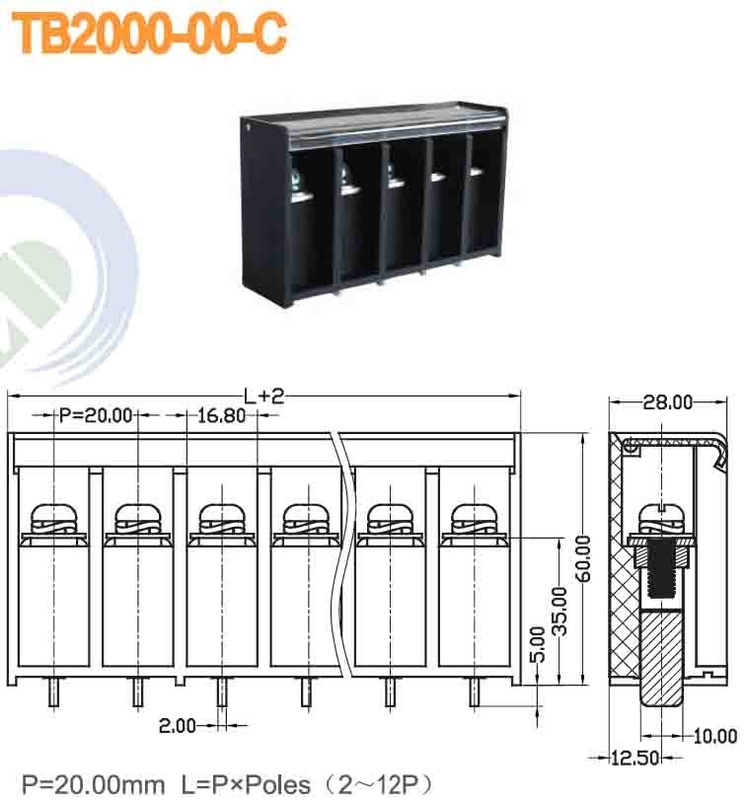

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 75 600 / 75 600 / 5
Wire Range AWG 26-4 26-4 26-4
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 1000 / 75 1000 / 75 1000 / 75
Rated Surge Voltage KV 12 12 12
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm 2.4*10.4
Stripping Length mm 16-18
Screw / Torque / lbf.in M6 / 18-22





Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block 0





Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal Block Pitch 20.00mm 600V 75A 2-12P Power M6 Terminal Block 2
