Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block

Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block

Products - Pluggable Terminal Block
  • Highlight

    300V Pluggable Terminal Block

    ,

    24P Pluggable Terminal Block

    ,

    15A Pluggable Terminal Block

  • Pitch
    5.08mm
  • Color
    Black
  • Poles
    2-24 P
  • Material
    PA66
  • Terminal
    Phosphor Bronze
  • Key Words
    Pluggable Male Terminal
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-12
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block

  • Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block
  • Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block
  • Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block
Get Price Contact Now

Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block



Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels





Parameter:



UL Technical Data B C D
Rated Voltage / Current V/A 300/15   300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 300 / 15 400 / 15 630 / 15
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Phosphor bronze / Golden Plated
Other Data
Stripping Length mm 10-11

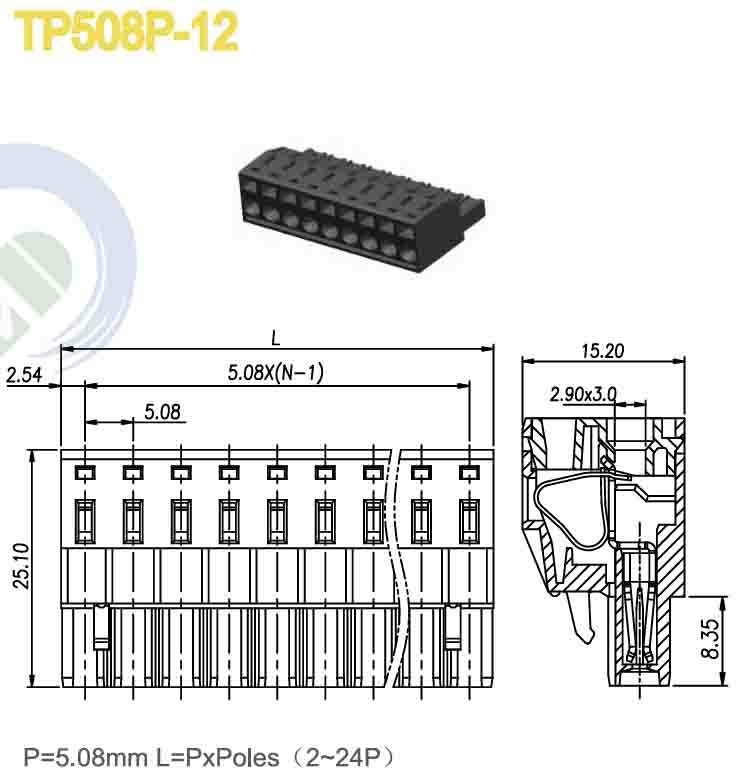

Pin Dimension mm





Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block 0



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

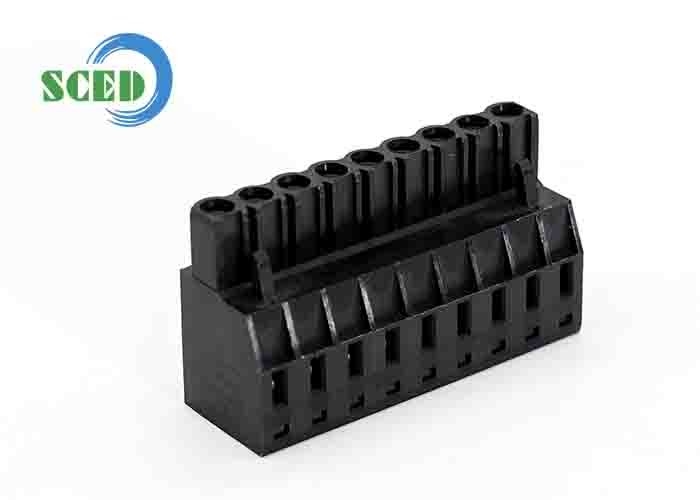

Pluggable Terminal Block Header Male Sockets 300V 15A 2-24P Pitch 5.08mm Black Plug-in Terminal Block 1
