300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P

300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P

Products - Pluggable Terminal Block
  • Highlight

    300V 55A Pluggable Terminal Block

    ,

    600V 55A Pluggable Terminal Block

    ,

    3P Pluggable Terminal Block

  • Type
    Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
  • Pitch
    10.16mm
  • Number Of Contacts
    3P
  • Rated Voltage
    600/300V
  • Rated Current
    55A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP1000P-00+TP1000H-00V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P

  • 300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P
  • 300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P
  • 300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P
  • 300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P
Get Price Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


300V 55A Female Pluggable Terminal Block + 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P

■Single Level;  □Double Levels;  □Triple Levels


This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



How to order:

 300V 55A Female Pluggable Terminal Block , 600V 55A PCB Terminal Blocks Pitch 10.16mm 3P 0


Parameter and Drawing Specifications:

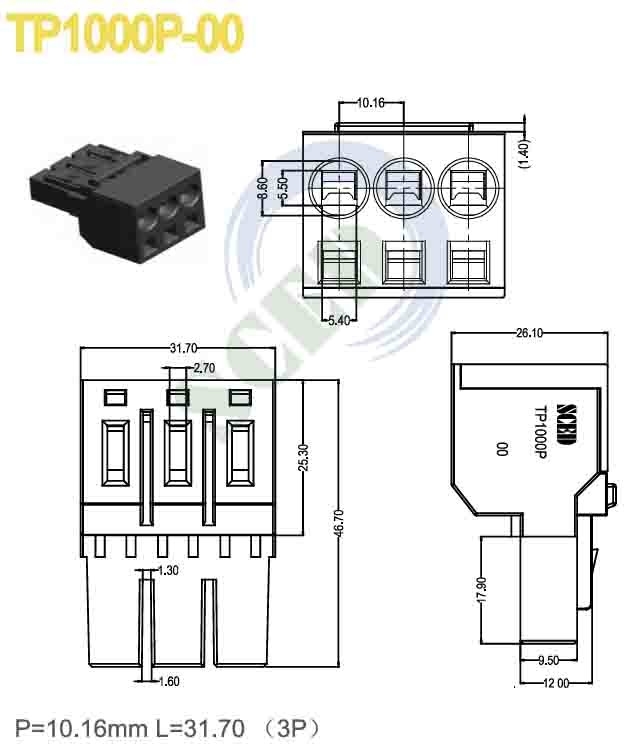

TP1000P-00

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 55

600 / 55

600 / 5

Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 55

800 / 55

1000 / 55

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2



Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal  / Plating

Copper / Tin Plated

Clamp Cage / Plating



Screw / Plating



Other Data



Stripping Length                    mm

18-20

Screw / Torque                    / lbf.in

N.A

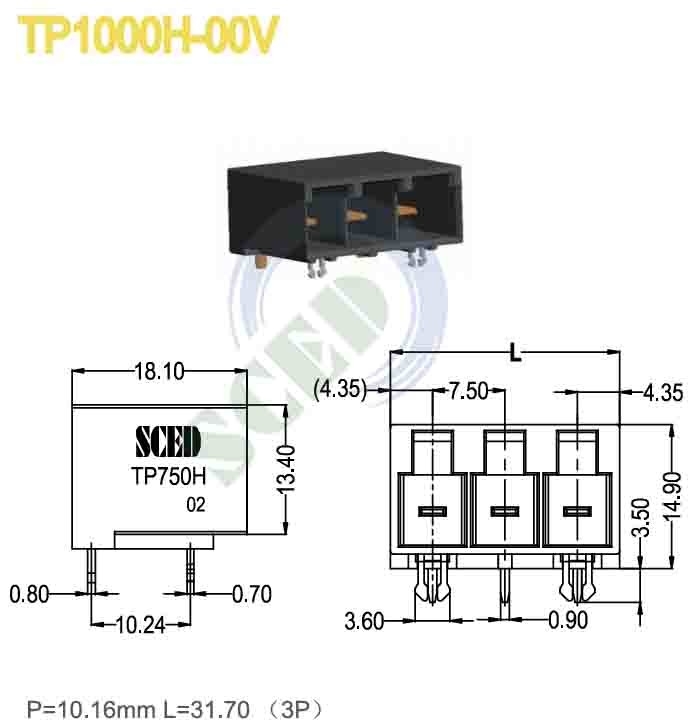

TP1000H-00V
