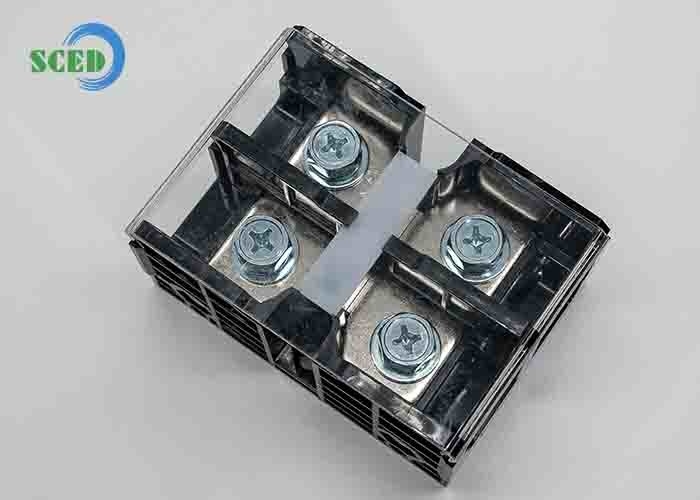

Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation

Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation

Products - High Current Terminal Block
  • Highlight

    Black High Current PC Terminal Block

    ,

    200A High Current PC Terminal Block

    ,

    31.00mm High Current PC Terminal Block

  • Type
    High Current Barrier Terminal Block, Power Terminal Blocks, Electrical Terminal Blocks
  • Pitch
    31.00mm
  • Rated Voltage
    600V
  • Rated Current
    200A
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4/0-20
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR200-02-BCM0-2P
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation

  • Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation
  • Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation
  • Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation
Get Price Contact Now

Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

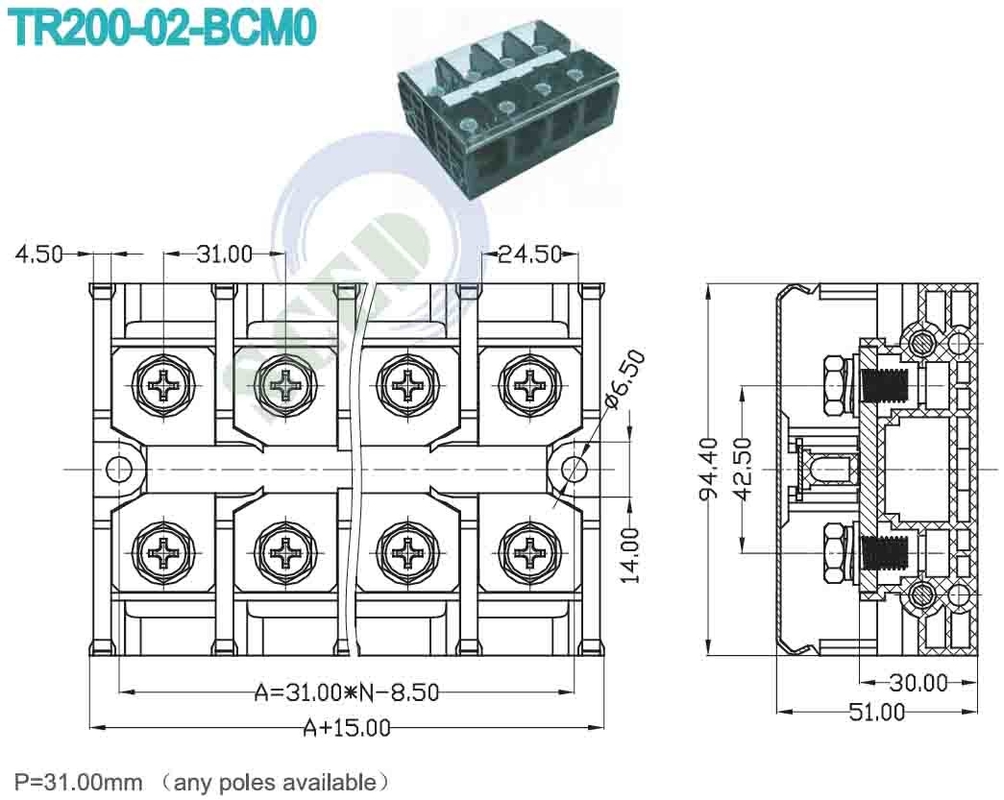

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 200

600 / 200



Wire Range                       AWG

4/0-20

4/0-20



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 200

1000 / 200

1000 / 200

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

                                  80



Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M8 / 31-40



Black High Current PC Terminal Block Pitch 31.00mm 600V 200A For Rail Transportation 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
