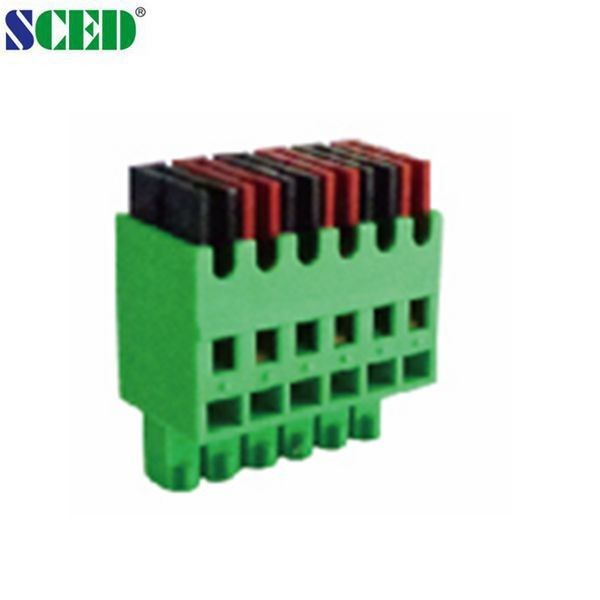

Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks

Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks

Products - Plug In Terminal Block
  • Highlight

    power terminal block connector

    ,

    electric terminal block

  • Wire Range
    20-22
  • Rate Connecting
    0.5
  • Surge Voltage
    6KV
  • Imflammability
    UL94, V-0
  • Housing Material
    PA66
  • Pitch
    3.81mm
  • Current
    5A
  • Voltage
    300V
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-08
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks

  • Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks
  • Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks
Get Price Contact Now

Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks





Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 5





Wire Range                       AWG

20-22





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400/6

400/6

400/6

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

0.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating



Terminal / Plating

Brass / Tin Plated

Screw / Plating





Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 0Screwless Plug in Terminal Block / 3.81mm Phoenix terminal blocks 6



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
