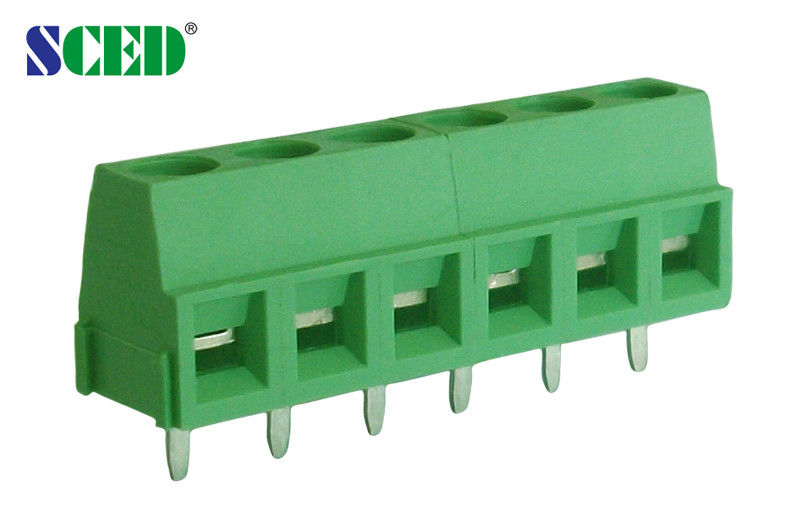

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG

Products - PCB Terminal Block
  • Highlight

    300V Terminal Block Connector

    ,

    10A Terminal Block Connector

    ,

    PA66 Terminal Block Connector

  • Color
    Green
  • Metal Parts
    Brass
  • Pitch
    5.08mm
  • Voltage
    300V
  • Current
    10A
  • Poles
    2-24 Poles
  • Wire Inlet
    Right Angle
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guanfdong,China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TJ508-07
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.04-0.085 PER Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG

  • Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG
  • Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG
  • Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG
Get Price Contact Now



Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14-30 AWG



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■ Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.



Applications:



It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military etc..

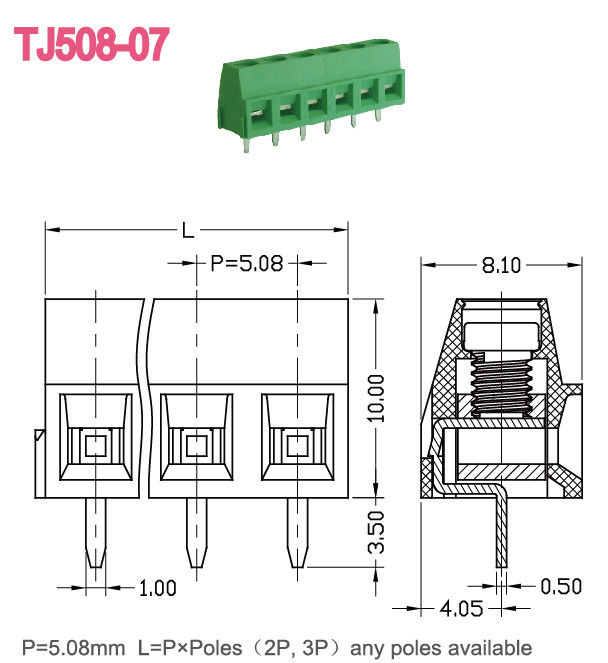

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response and good after-sales service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Brass 5.08mm Spacing PA66 300V 10A M3 Screw Terminal Block Connector 14 - 30 AWG 0
