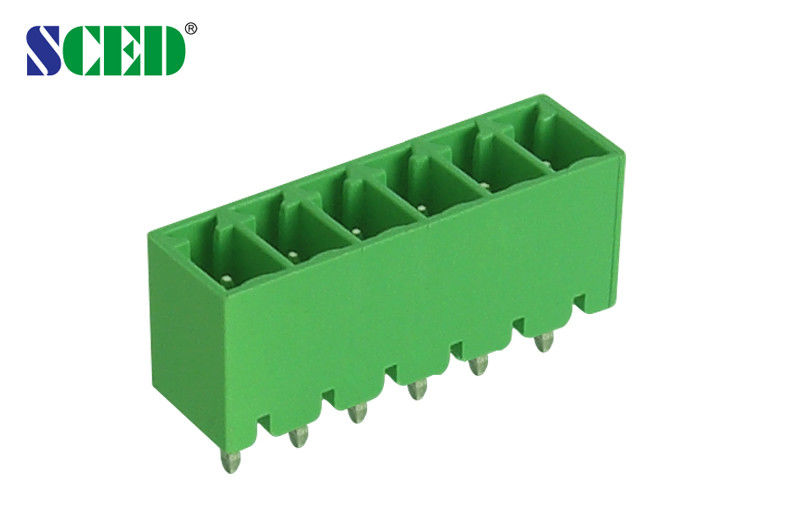

8A Pluggable Terminal Block Male Part Pitch 3.5mm 300V UL94-V0 Class
Detailed product Description:
Header, Male Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23
Wire Inlet: □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
Levels: ■Single Level; □Double Levels; □Triple Levels
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.

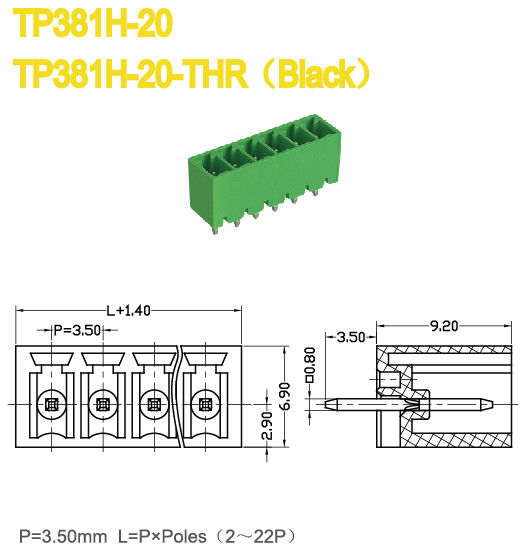

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 8 | ||
| Wire Range AWG | |||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
| Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.2 | ||
| PinDimension mm | 0.8 x 0.8 | ||
Applications:
Our products can be used in lots of fields and industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment and Military and so on.
