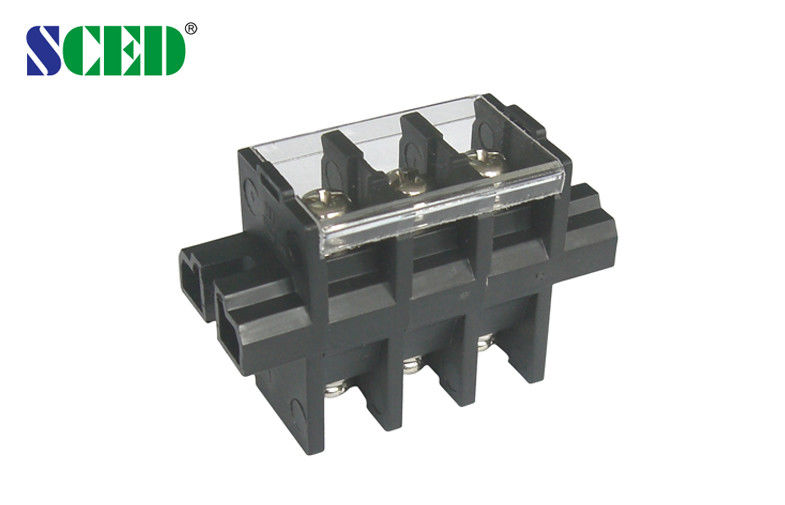

40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw

40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw

Products - Panel Mount Terminal Block
  • Highlight

    40A Terminal Block Connector

    ,

    M5 Screw Terminal Block Connector

    ,

    13mm Panel Mount Terminal Block

  • Current
    40A
  • Voltage
    600V
  • Pitch
    13mm
  • Screw
    M5
  • Torque
    16-18 Lbf.in
  • Stripping Length
    8-10mm
  • Plastic
    PBT
  • Inflammability Class
    UL94-V0
  • Conduction Board
    Brass
  • Wire Range
    8-22 AWG
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE,CUL, UL, CQC, VDE etc.
  • Model Number
    TD40-01-C
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.233-0.466 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw

  • 40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw
  • 40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw
  • 40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw
Get Price Contact Now



40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT



Detailed product Description:



Pitch 13.0mm, 600V 40A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors



Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:



40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw 0

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

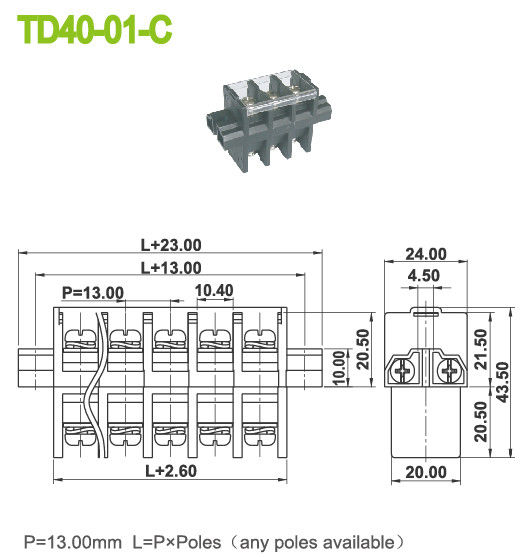

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 8-22 8-22 8-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 8
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 8-10
Screw / Torque / lbf.in M5 / 16-18



Competitive Advantage:



  1. Quickly response
  2. Full range products for selection
  3. Flexible to design the exact part per customers’ demand
  4. Stable quality and competitive price

40A Panel Mount Power Terminal Block Connector Perforation Pitch 13mm M5 Screw 1
