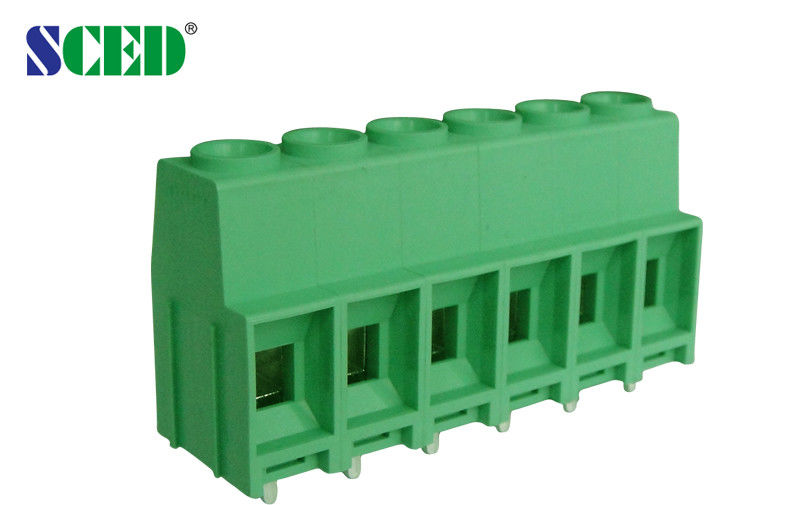

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm

Products - PCB Screw Terminal Block
  • Highlight

    PCB Screw Terminal Block 11mm

    ,

    PA66 Plastic PCB Terminal Block

    ,

    Brass Clamp Cage PCB Terminal Block

  • Spacing
    10.16mm
  • Color
    Green
  • Wire Range
    6-22 AWG
  • Current
    57A
  • Stripping Length
    9-11mm
  • Screw
    M4
  • Poles
    2-16 Poles
  • Plastic
    PA66
  • Clamp Cage
    Brass
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE, UL, CUL, CQC and VDE etc.
  • Model Number
    TJ952-04-A1
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.114-0.228 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm

  • 9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
  • 9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
  • 9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
Get Price Contact Now

Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles





Detailed product Description:



Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wre Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm 0



Applications:

Our products can be used in Power Supply, Military, Security, PCB, Automation, Communication, Industrial Control, Medical Equipment etc.

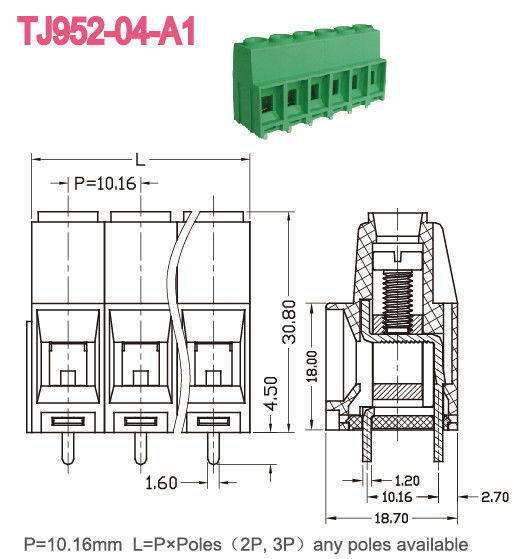

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/57 300/57
Wire Range AWG 6-22 6-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ2.2
Stripping Length mm 9-11
Screw / Torque / lbf.in M4 / 10.6-13



Competitive Advantage:



  1. Flexible to design the exact part per customers’ demand
  2. More than 1000 models for selection
  3. Good quality and competitive price
  4. Quick response

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm 1
