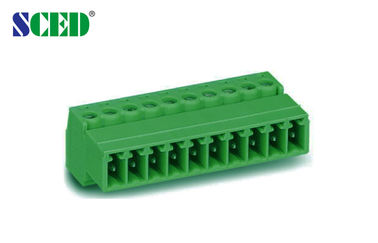

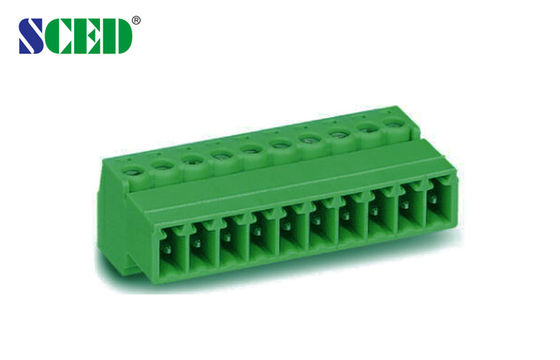

Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P

Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P

Products - Plug In Terminal Block
  • Highlight

    power distribution terminal block

    ,

    power terminal block connector

  • Housing Material
    PA66, UL 94, V-0
  • Color
    Green
  • Contact Type
    Pluggable, Wire To Wire
  • Current
    8A
  • Pitch
    3.81mm
  • Volt
    300V
  • Volt
    300V
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-05
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P

  • Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P
  • Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P
Get Price Contact Now

Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A  2P - 22P

Male Sockets Plug In Terminal Block Pitch 3.81mm 300V 8A 2P - 22P 0





Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Contactor / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M2 / 2-2.2





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
