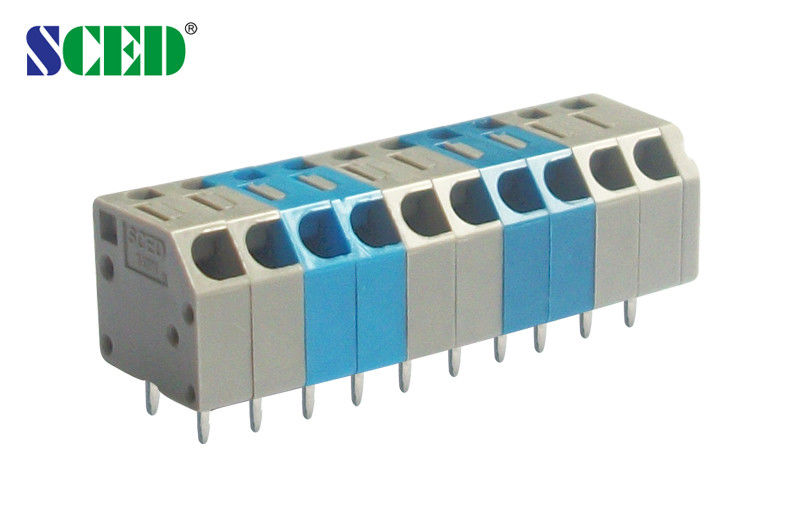

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P

Products - Spring Terminal Block
  • Highlight

    Spring Type Terminal Block 3.50mm

    ,

    Wire Inlet Spring Type Terminal Block

    ,

    45 Degree Spring Terminal Block

  • Type
    Spring Type
  • Color
    Grey And Blue
  • Pitch
    3.5mm
  • Current
    10A
  • Voltage
    300V
  • Plastic
    PA66
  • Terminal
    Brass
  • Plating
    Nickel Plated
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TJ381-15
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.034-0.068 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P

  • 45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P
  • 45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P
  • 45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P-28P
Get Price Contact Now



45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P



Detailed product Description:



Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey.

Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.



Applications:



Our terminal blocks can be used in a lot of fileds, such as:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power

3.Security, Medicine Equipment, Military, Elevator and so on.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-26(sol) 16-26(str)



14-26(sol) 16-26(str)

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

8-9



Competitive Advantage:



1. Flexible to design the exact part per customers' demand

2. Stable good quality with competitive price

3. Quick response

4. more than 1000 models for selection.
