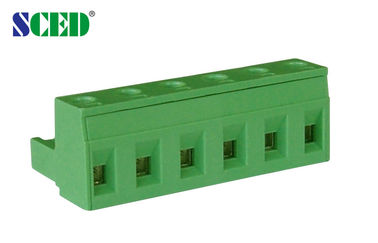

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector

Products - Plug In Terminal Block
  • Highlight

    Pluggable Single Level Terminal Blocks

    ,

    Single Level Brass Female Connector

    ,

    Pitch 7.62mm Brass Female Connector

  • Color
    Green
  • Pitch
    7.62mm
  • Type
    Plug In
  • Current
    8A
  • Voltage
    300V
  • Poles
    2-24 Poles
  • Insulation Material
    PA66
  • Screw
    M2
  • Torque
    2-2.2 Lbf.in
  • Clamp Cage
    Brass
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TP508P-76
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.06-0.12 PER Pole
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector

  • Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
  • Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
  • Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Get Price Contact Now

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm



Detailed product Description:



Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V



Levels: ■Single Level



Standard color: Green.



Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

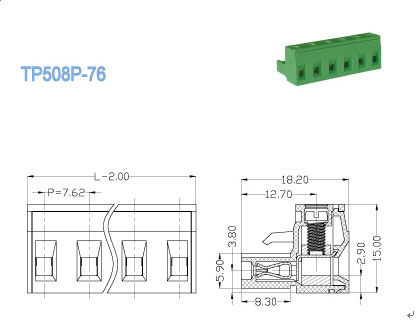

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 18   300 / 18
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. High quality
  2. Reasonable price
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector 1
