Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through

Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through

Products - Panel Mount Terminal Block
  • Highlight

    Medicine Equipment Terminal Block

    ,

    Server Site Terminal Block

    ,

    180A Terminal Block

  • Pitch
    21mm
  • Current
    180A
  • Voltage
    300V
  • Screw
    M6
  • Torque
    20-22 Lbf.in
  • Plastic
    PBT
  • Insulation Material
    UL94-V0
  • Stripping Length
    14-18mm
  • Wire Range
    20-1/0 AWG
  • Conduction Board
    Copper
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TD180-01-C
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 1.143-2.286 Per Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through

  • Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through
  • Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through
  • Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through
Get Price Contact Now

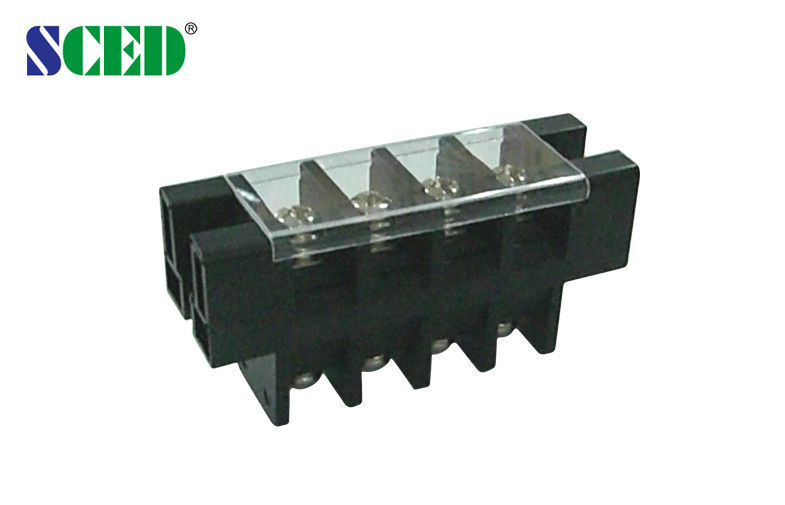

180A Panel Mount Terminal Block 21mm Perforation Feed Through with Plastic Cover



Detailed product Description:



Pitch 21.0mm, 600V 180A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■ Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

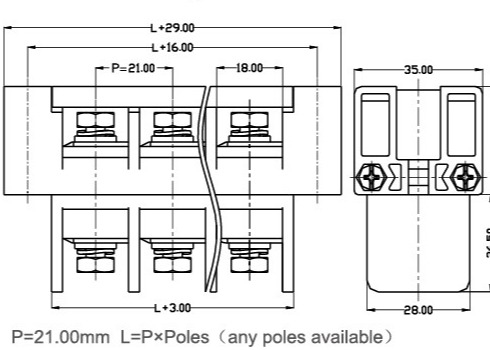

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 180 300 / 180 300 / 10
Wire Range AWG 20-1/0 20-1/0 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 180 800 / 180 1000 / 180
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 8
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Conduction Board / Plating Copper / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 14-18
Screw / Torque / lbf.in M6 / 20-22



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Medicine Equipment 21mm Perforation 180A Panel Mount Terminal Block Feed Through 1
