Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0

Products - Pluggable Terminal Block
  • Highlight

    300V 8A Pluggable Terminal Block

    ,

    Spacing 3.5mm Pluggable Terminal Block

    ,

    22 Positions Pluggable Terminal Block

  • Pitch
    3.81mm
  • Wire Range
    16-30 AWG
  • Poles
    2-22 Poles
  • Current
    8A
  • Voltage
    300V
  • Insulation Material
    PA66
  • Inflammability Class
    UL94-V0
  • Stripping Length
    9-10mm
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC,VDE etc.
  • Model Number
    TP381P-23
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.05 -0.12 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0

  • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0
  • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0
  • Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0
Get Price Contact Now

Spacing 3.5mm Pluggable Terminal Block Female Green 2-22 Positions 300V/8A UL94-V0



Detailed product Description:



Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Single Level; □Double Levels; □Triple Levels



This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V.



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

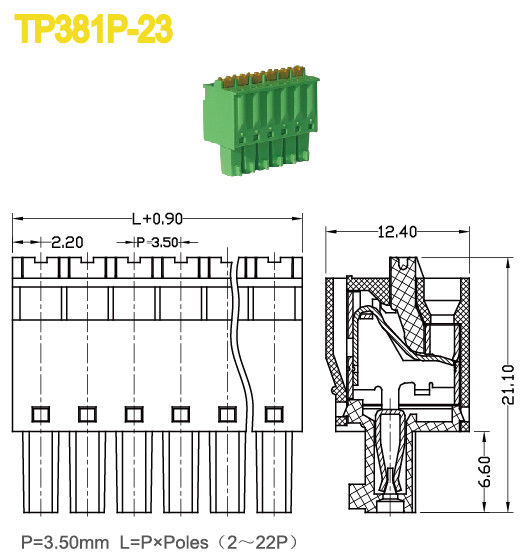

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Spring Clamp Stainless Steel
Terminal / Plating Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm 9-10



Competitive Advantage:



  1. More than 13 years of experience
  2. 10 main series and more than 1000 models
  3. OEM and ODM service
  4. High stable quality and competitive price
  5. Quick response and good service

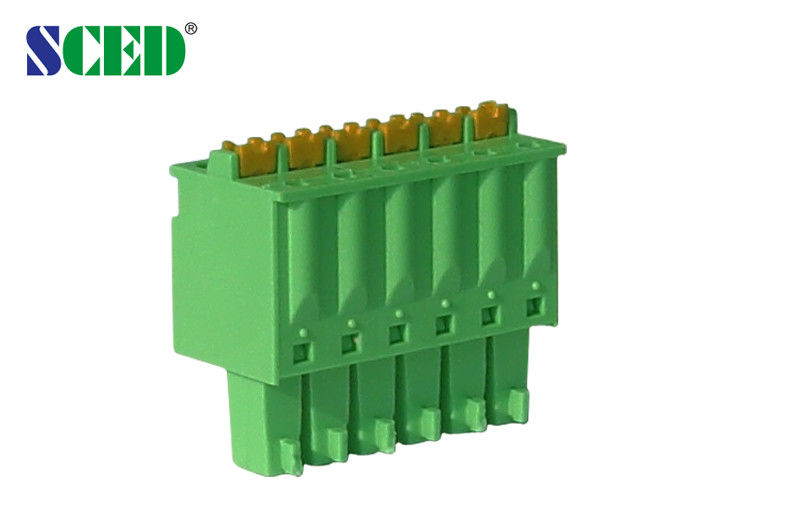

Green Spacing 3.5mm Pluggable Terminal Block Female 2-22 Positions 300V 8A UL94-V0 1
