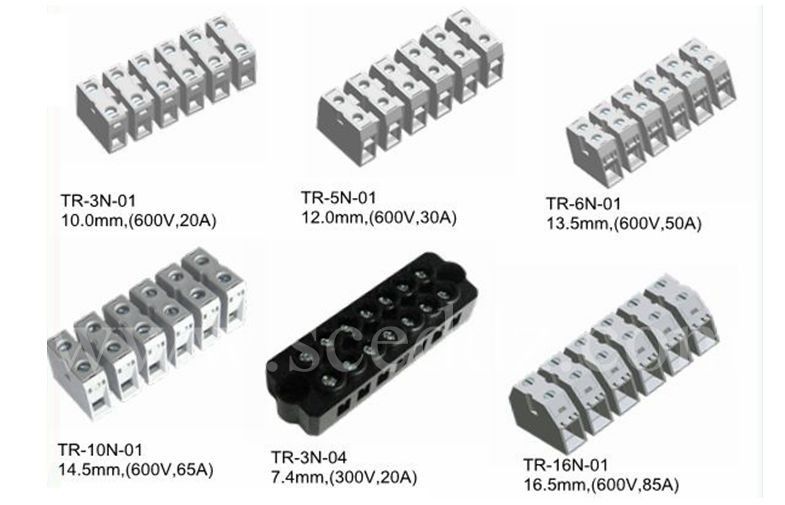

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

Products - Feed Through Terminal Block
  • Highlight

    20A Feed Through Terminal Block

    ,

    600V Feed Through Terminal Block

  • Pitch
    10mm
  • Pole
    2-16 Poles Available
  • Current
    20A
  • Voltage
    600V
  • Wire Range
    12-18AWG
  • Plastic
    PA66
  • Inflammability Class
    UL94-V0
  • Stripping Length
    5-6mm
  • Screw
    M3
  • Plating
    Nickel Plated
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CE,CQC and VDE etc.
  • Model Number
    TR-3N-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.102-0.205
  • Packaging Details
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage

  • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
  • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
  • 2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage
Get Price Contact Now

2-16 Poles 600V Feed Through Terminal Block 20A Brass Clamp Cage



Detailed product Description:



Pitch10.00mm, 600V 20A, 2-16P, Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch

2.Power Supply, Electric Lighting, Industry Control, Automation

3.Rail Transportation, Communication, Electric Power

4.Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 20

600 / 20



Wire Range                       AWG

12-18

12-18



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

5-6

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. 10 main series and more than 1000 models for selection
  5. OEM and ODM service can be provided
