Electrical Terminal Block Accessories Metal Parts 60A PCB Terminals 6.0*9.0mm

Electrical Terminal Block Accessories Metal Parts 60A PCB Terminals 6.0*9.0mm

  • Highlight

    Metal Parts PCB Terminals

    ,

    60A PCB Terminals

    ,

    Electrical Terminal Block Accessories

  • Center SPace
    6.0*9.0mm
  • Screw
    M3
  • Terminal Body
    Brass
  • Screw Torque
    8 Lbf.in
  • Rated Current
    60A
  • Screw Plating
    Nickel Plated
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    AO-10/4J-N4
  • Minimum Order Quantity
    1000 pcs
  • Price
    USD 0.05-0.10 PER PC
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Electrical Terminal Block Accessories Metal Parts 60A PCB Terminals 6.0*9.0mm

Electrical Terminal Block Accessories Metal Parts for Electronics PCB Terminals



Detailed product Description:



Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

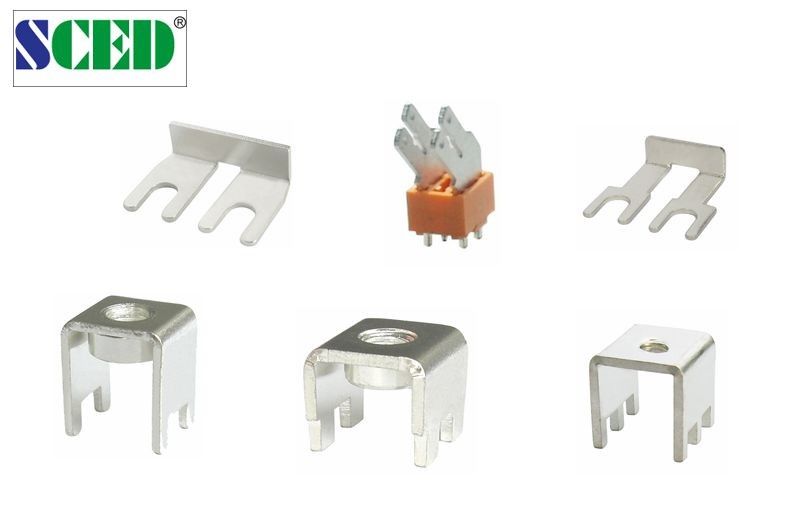

Electrical Terminal Block Accessories Metal Parts 60A PCB Terminals 6.0*9.0mm 0



Competitive Advantage:



  1. OEM and ODM service can be provided
  2. R&D ability
  3. More than 1000 models
  4. High quality and competitive price
  5. Good service
