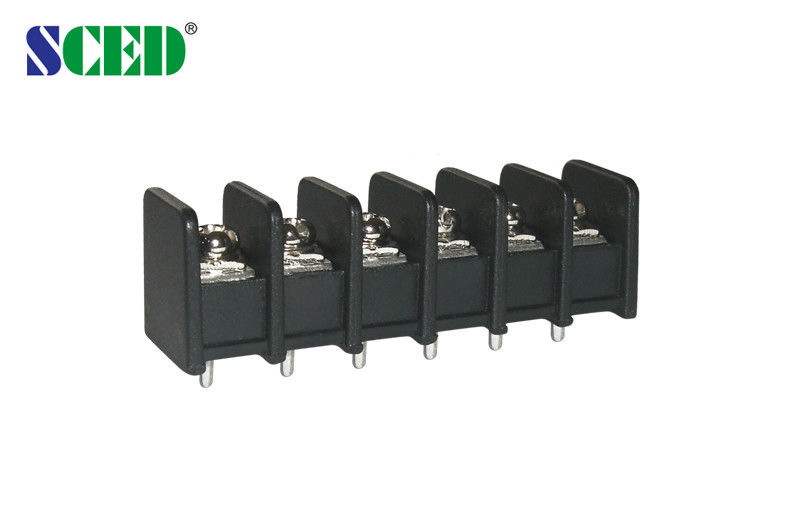

M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A

M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A

Products - Barrier Terminal Block
  • Highlight

    Pitch 8.255mm Barrier Terminal Block

    ,

    M3 Screw Barrier Terminal Block

    ,

    300V Power Terminal Blocks

  • Poles
    2-32 Poles
  • Pitch
    8.255mm
  • Current
    20A
  • Voltage
    300V
  • Plastic
    PBT
  • Screw
    M3
  • Inflammability Class
    UL94, V-0
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TB825-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.04-0.08 per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A

  • M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A
  • M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A
  • M3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A
Get Price Contact Now

8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V/20A M3 Screw



Detailed product Description:



Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc..

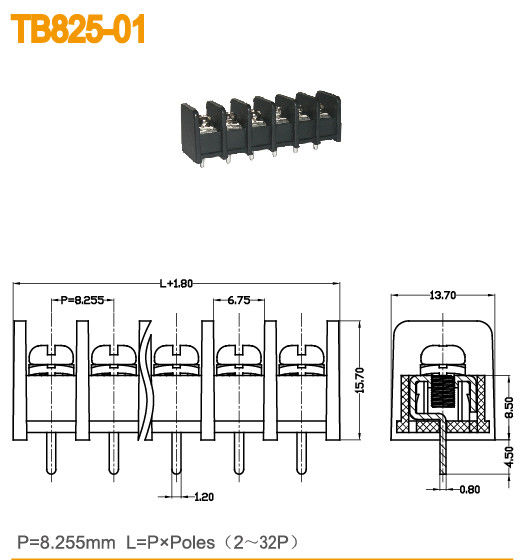

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/20



300/10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 32

400 / 32

630 / 32

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.8

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 5-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. OEM serviceM3 Screw 8.255mm Pitch Barrier Terminal Block 2-32 Poles 300V / 20A 0
