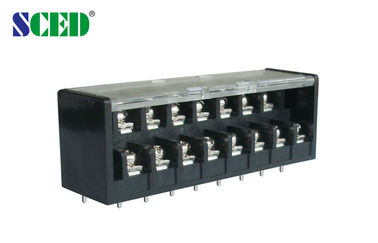

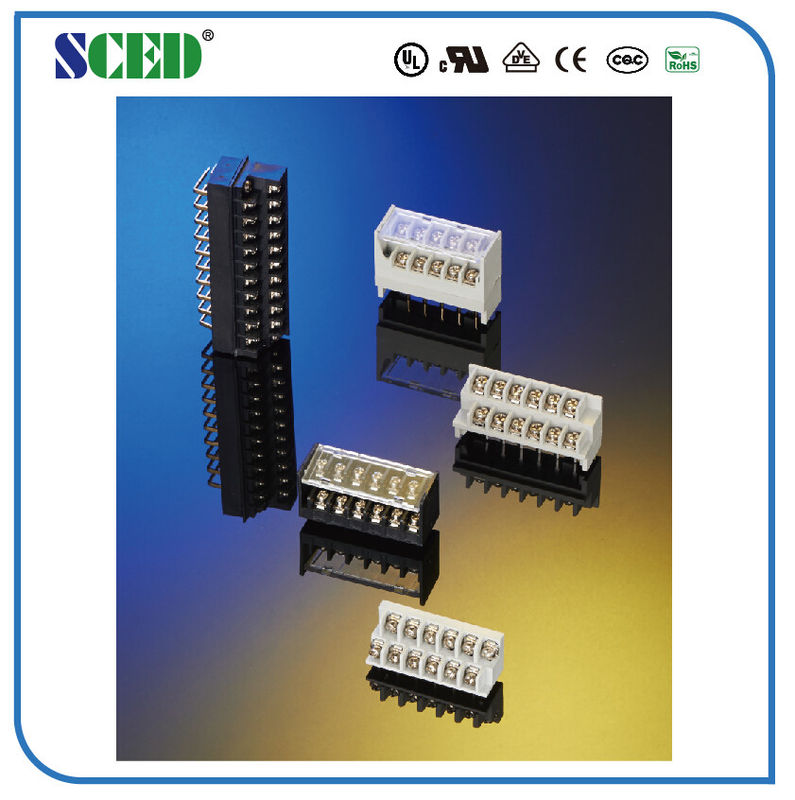

7.62mm Barrier Terminal Block Double Decks Electric Terminal Blocks 300V 15A
Quick Details:
1. PCB Euro Terninal Blocks is widely used in automation, frequency conversion, communication, power supply and etc.
1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
2. With or without cover, one or two rows, from one level to three levels, etc.
3. Materials: Plastic housing is PBT(UL94 V-0)
4. Operating temperature: -40℃~+120℃
5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Tag:
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.
