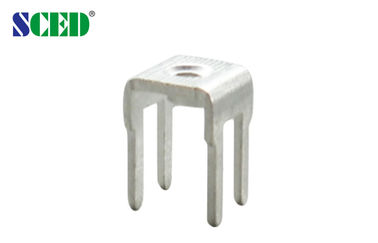

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts

  • Highlight

    M3 Screw Terminal Block Accessories

    ,

    40A Terminal Block Accessories

    ,

    40A Electronic Components Parts

  • Rated Current
    40A
  • Center Space
    5.2*7.4mm
  • Terminal Body
    Brass
  • Screw Material
    Steel
  • Screw
    M3
  • Screw Torque
    7 Lbf.in
  • Contact Resistance
    Less Than 8mΩ
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    AO-08/4J-2
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.016 Per PCS
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electrical Components





Detailed product Description:



Terminal Accessories, PCB terminal, Electrical components



Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.



Applications:



Pins and simple terminal connect parts are accessories component. And normally they're widely used in PCB, Security, Communication, Medical Equipmemts, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation and so on.



Competitive Advantage:



  1. More then 10 years of experience in China
  2. Stable good quality
  3. Competitive price
  4. More than 1000 models for selection
