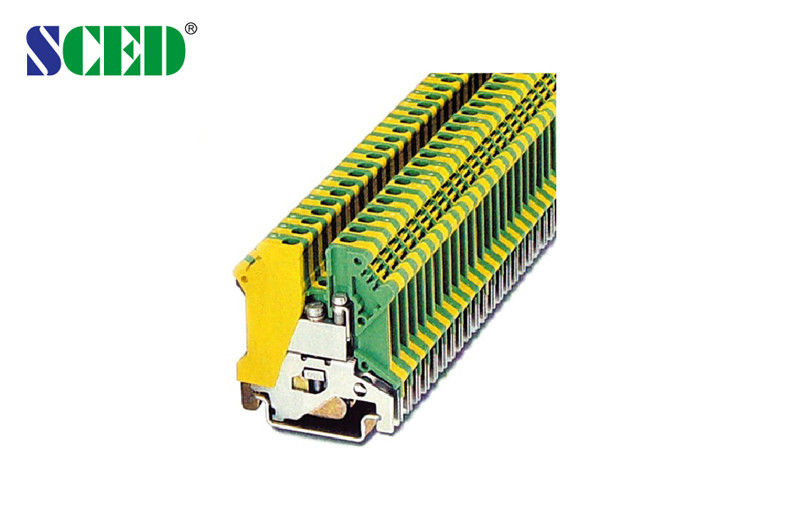

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw

Products - Din Rail Terminal Blocks
  • Highlight

    CE Din Rail Terminal Blocks

    ,

    4mm2 Din Rail Terminal Blocks

    ,

    M3 Screw Din Rail Terminal Block

  • Terminal Width
    6.2mm
  • Wire Range
    26-10 AWG
  • Color
    Green And Yellow
  • Stripping Length
    8mm
  • Screw
    M3
  • Torque
    0.6-0.8 Nm
  • Height
    47/54.5/52 Mm
  • Dimensions
    6.2/42.5mm
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL,CE etc.
  • Model Number
    TR-KG5N
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.5-1.0 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw

  • Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
  • Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
  • Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
Get Price Contact Now

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow



Detailed product Description:



Terminal Width: 6.2mm, AWG:26-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Wire Range:■Right angle wire inlet;

Decks:■Single Deck;

Standard color: Green and yellow.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw 0



Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG5N
Zack Strip White ZB6 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 6.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 8



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Stable high quality and competitive price
  4. Quick response and good service

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw 1
