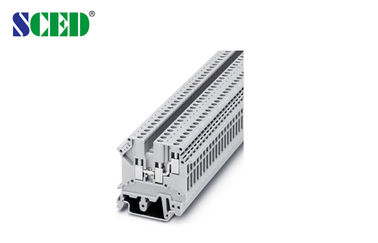

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12

Products - Din Rail Terminal Blocks
  • Highlight

    rail mounted terminal blocks

    ,

    din rail terminals blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-3N-02
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12

  • Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12
  • Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12
Get Price Contact Now

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12



Detailed product Description:



Terminal width: 5.2mm, 150V 20A, AWG:30-12, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks



Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 0





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-3N-02

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 1End Cover Grey



 D-TR-5T

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 2Fixed Bridge



 FBRI 10-5N Imax: 24A

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 3Insertion Bridge



 EBL 10-5 Imax: 24A

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 4Separating Plate



 TS-K

Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 5Partition Plate




Zack Strip White ZB5
Screwdriver SZS0.6×3.5
Rail Material aluminum
Dimensions mm 5.2/50.5/2
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Screw / Torque Nm M3 / 0.5-0.6
Stripping Length mm 8
IEC Technical Data
Max. Load Current / Cross Section A / mm2 24 / 2.5
Rated Surge Voltage / Contamination Class KV / - 6 / 3
Surge Voltage Category Ⅲ



Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 6



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Terminal width 5.2mm Din Rail Terminal Blocks 150V 20A AWG 30 - 12 7
