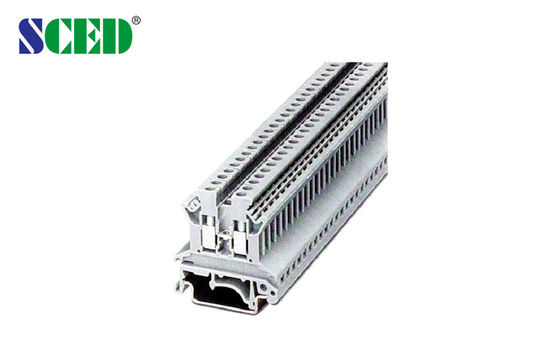

Terminal width 4.2mm 300V 15A Din Rail Terminal Blocks
Detailed product Description:
Terminal width: 4.2mm, 300V 15A, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Grey | TR-1.5N |
|
End Cover Grey
|
D-TR-2.5 |
|
Fixed Bridge
|
FBRI 10-4N Imax: 12A |
|
Insertion Bridge
|
|
|
Separating Plate
|
|
|
Partition Plate
|
ATP-TR |
| Zack Strip White | ZB4 |
| Screwdriver | SZS0.4×2.5 |
| Rail Material | aluminum |
| Dimensions mm | 4.2/42.5/1.5 |
| Height (U35: 7.5/U35: 15G 32) mm | 42/49.5/47 |
| Screw / Torque Nm | M2 / 0.22-0.25 |
| Stripping Length mm | 7 |
| IEC Technical Data | |
| Max. Load Current / Cross Section A / mm2 | 17.5 / 1.5 |
| Rated Surge Voltage / Contamination Class KV / - | 6 / 3 |
| Surge Voltage Category | Ⅲ |
Standard color:
Grey. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
