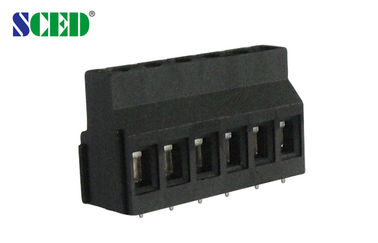

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors

Products - PCB Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-18-D1
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors

  • Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors
  • Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors
Get Price Contact Now

Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.2
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3





Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors 0





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:



Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors 1



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Pitch 5.08mm 300V 10A 2P - 24P Euro type Raising series Screw Type PCB Connectors 2
