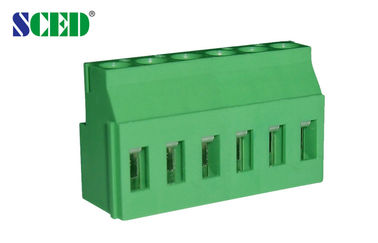

Vertical Wire Inlet 5.08mm 10A PCB Terminal block Stackable Type
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.5 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
